then be discovered and provisioned. This gives the system administrator adequate time to set up each device
beforehand.
Click on "Create New Device" and the following dialog will show. Follow the steps below to create the
configurations for the new device.
1. Firstly, select a model for the device to be created and enter its MAC address, IP address and firmware
version (optional) in the corresponding field.
2. Basic settings will show a list of settings based on the model selected in step 1. Users could assign
extensions to accounts, assign functions to Line Keys and Multiple-Purposed Keys if supported on the
selected model.
3. Click on “Create New Device” to save the configuration for this device.

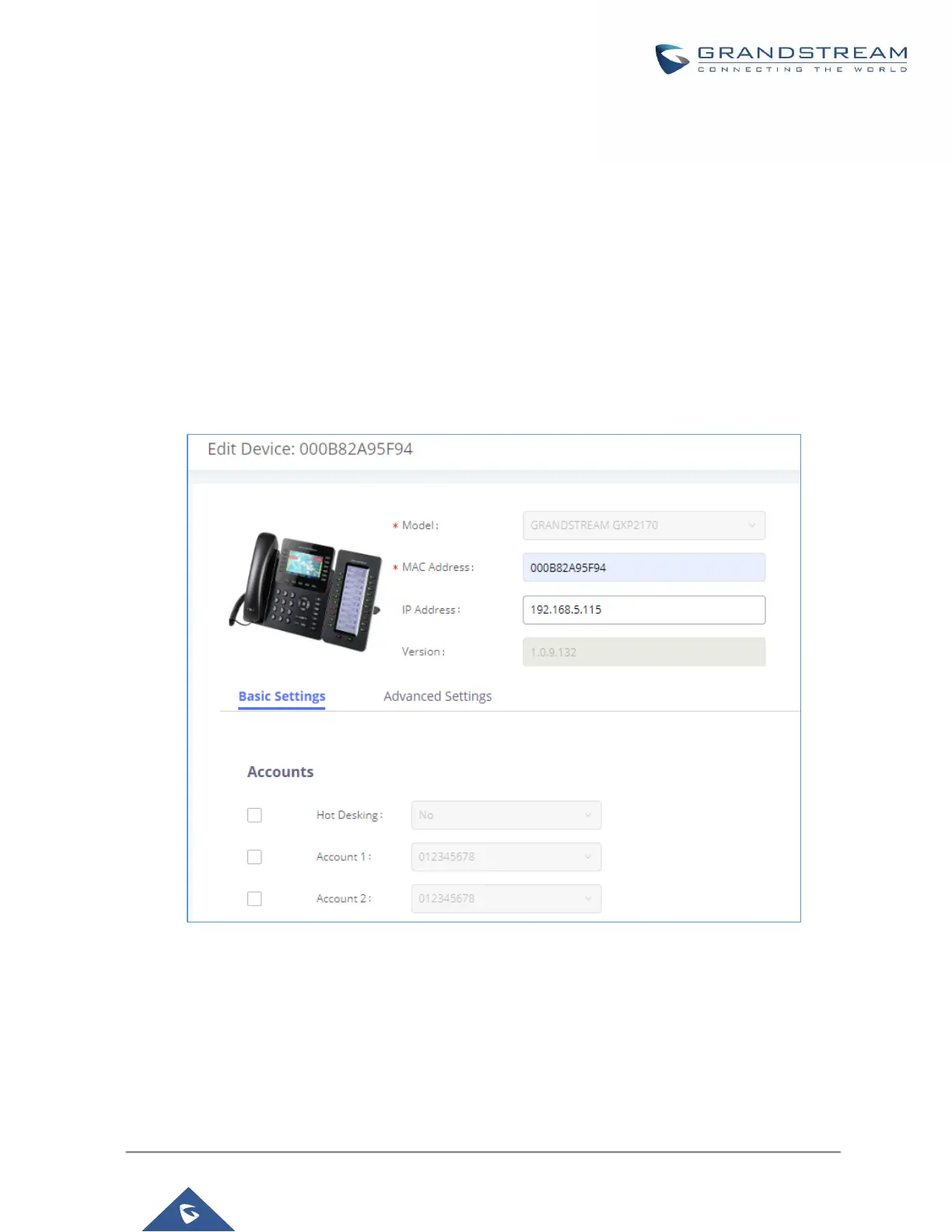

Figure 72: Create New Device
Manage Devices
The device manually created or discovered from Auto Discover will be listed in the Web GUI→Value-added
Features→Zero Config→Zero Config page. Users can see the devices with their MAC address, IP address,
vendor, model etc.
