Assuming the remote server base dn is “dc=pbx,dc=com”, configure the LDAP client as follows:
• LDAP Server: Enter a name for the remote LDAP server
• Server Address: Enter the IP address or domain name for remote LDAP server.
• Base DN: dc=pbx,dc=com
• Username: Enter username if authentication is required. This field cannot exceed 64 characters and
can contain space.
• Password: Enter password if authentication is required.
• Filter: Enter the filter. Ex: (|(CallerIDName=%)(AccountNumber=%))
• Port: Enter the port number. Ex:389
• LDAP Name Attributes: Enter the name attributes for remote server
• LDAP Number Attributes: Enter the number attributes for remote server
• Client type: Protocol of LDAP or LDAPS.
• LDAP Client CA cert: Upload LDAP client CA certificate, The following file types are supported: .crt .der
and .pem.
• LDAP Client Private Key: Upload LDAP client private key.

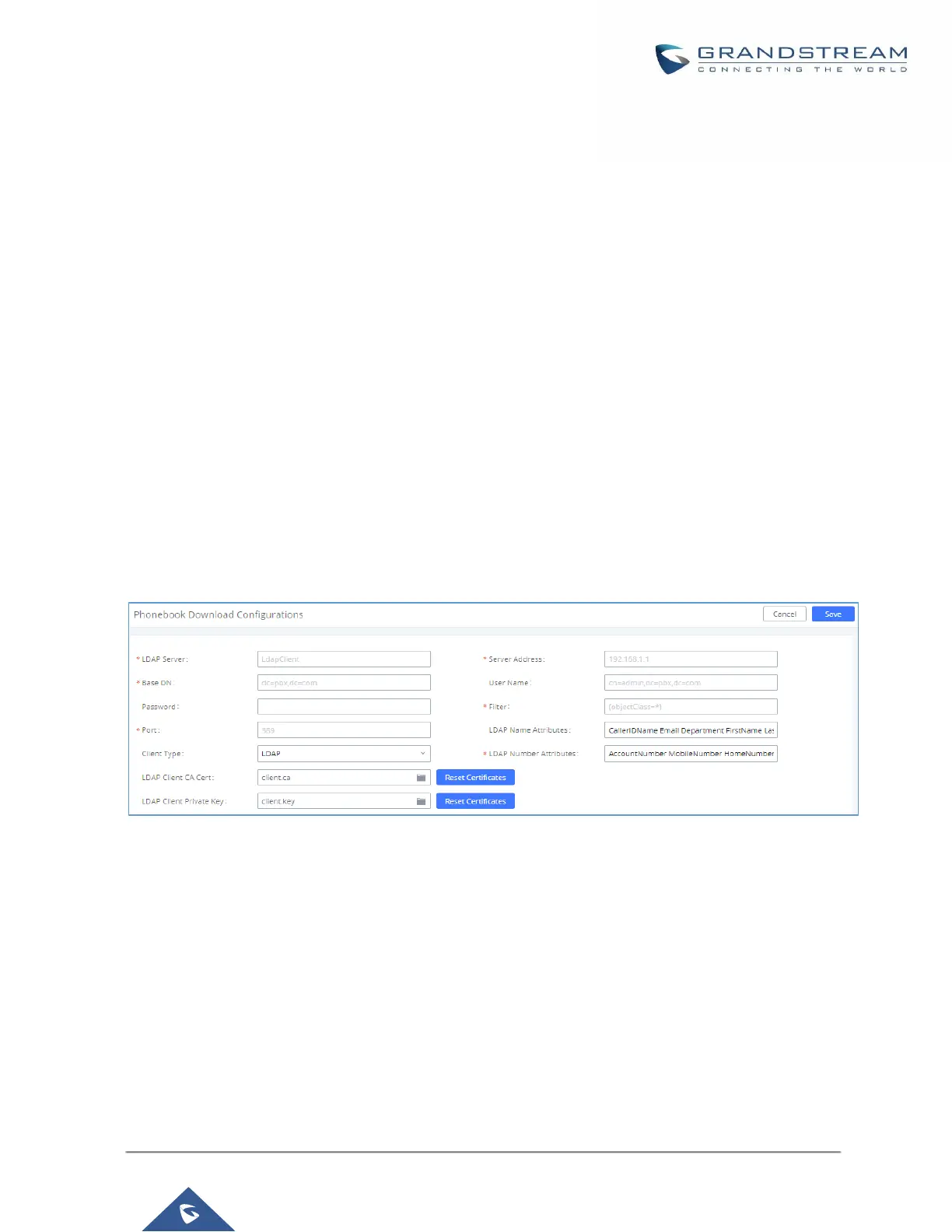

The following figure gives a sample configuration for UCM acting as a LDAP client.
Figure 43: LDAP Client Configurations
To configure Grandstream IP phones as the LDAP clients for UCM, please refer to the following example:
• Server Address: The IP address or domain name of the UCM6200
• Base DN: dc=pbx,dc=com
• Username: Please leave this field empty
• Password: Please leave this field empty
• LDAP Name Attribute: CallerIDName Email Department FirstName LastName
• LDAP Number Attribute: AccountNumber MobileNumber HomeNumber Fax
• LDAP Number Filter: (AccountNumber=%)
