P a g e | 85

UCM6200 Series User Manual

Version 1.0.20.38

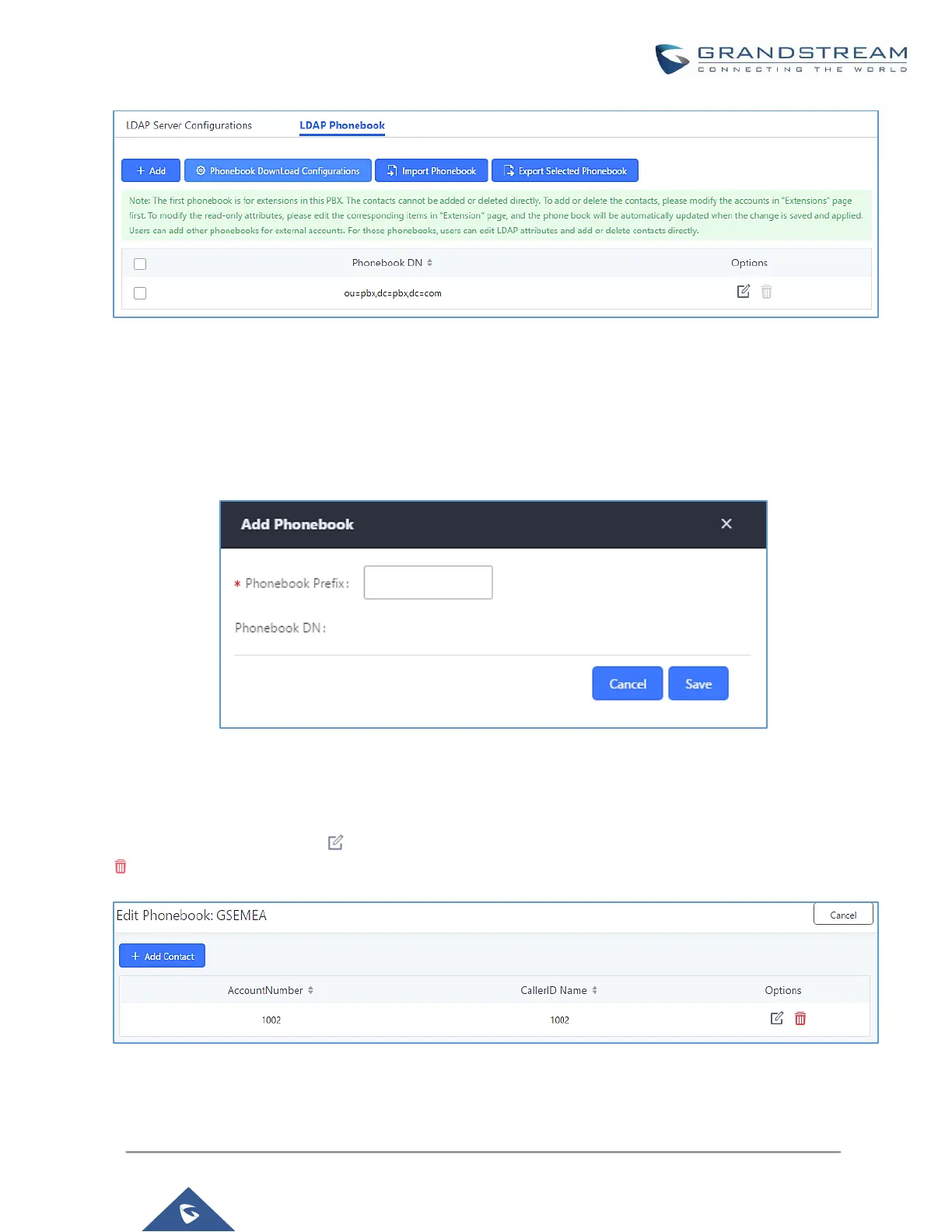

Figure 36: LDAP Server→LDAP Phonebook

• Add new phonebook

A new sibling phonebook of the default PBX phonebook can be added by clicking on "Add" under "LDAP

Phonebook" section.

Figure 37: Add LDAP Phonebook

Configure the "Phonebook Prefix" first. The "Phonebook DN" will be automatically filled in. For example, if

configuring "Phonebook Prefix" as "people", the "Phonebook DN" will be filled with "ou=people,dc=pbx,dc=com".

Once added, users can select to edit the phonebook attributes and contact list (see figure below) or select

to delete the phonebook.

Figure 38: Edit LDAP Phonebook
