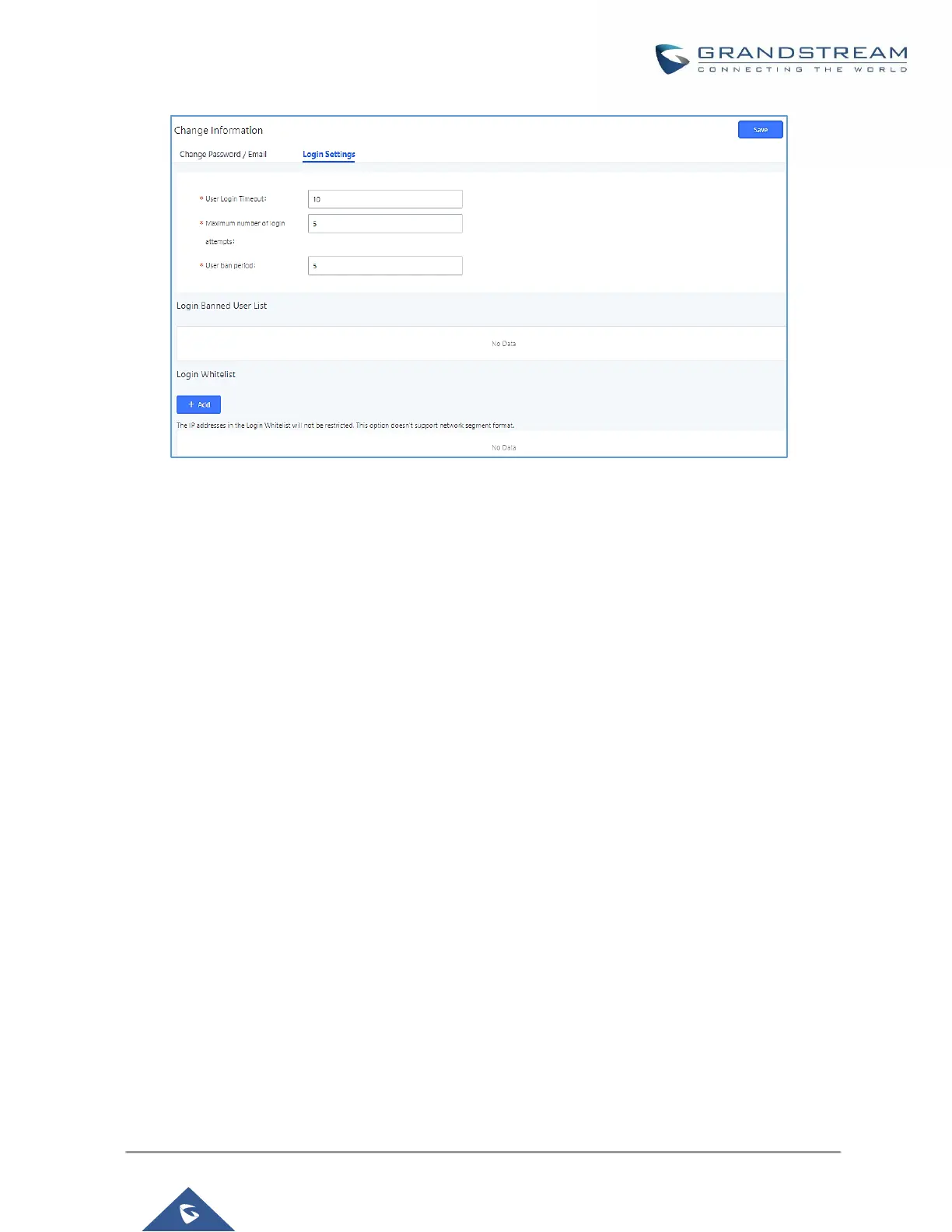

Figure 326: Login Timeout Settings

Operation Log

The Operation Log lists all activities done by all users that have accessed the UCM web portal. This page is

found under Maintenance->Operation Log.
