f) Direction: Select the traffic direction to which this profile will be applied.
Options include Upstreamand Downstream(default). This setting will limit the rate at which
WLAN clients can upload or download data.
8. In Traffic Handling Action, set the action to apply to the traffic.
Options include Blockand Allow.
9. Click Create New.
You have completed creating a network traffic profile.

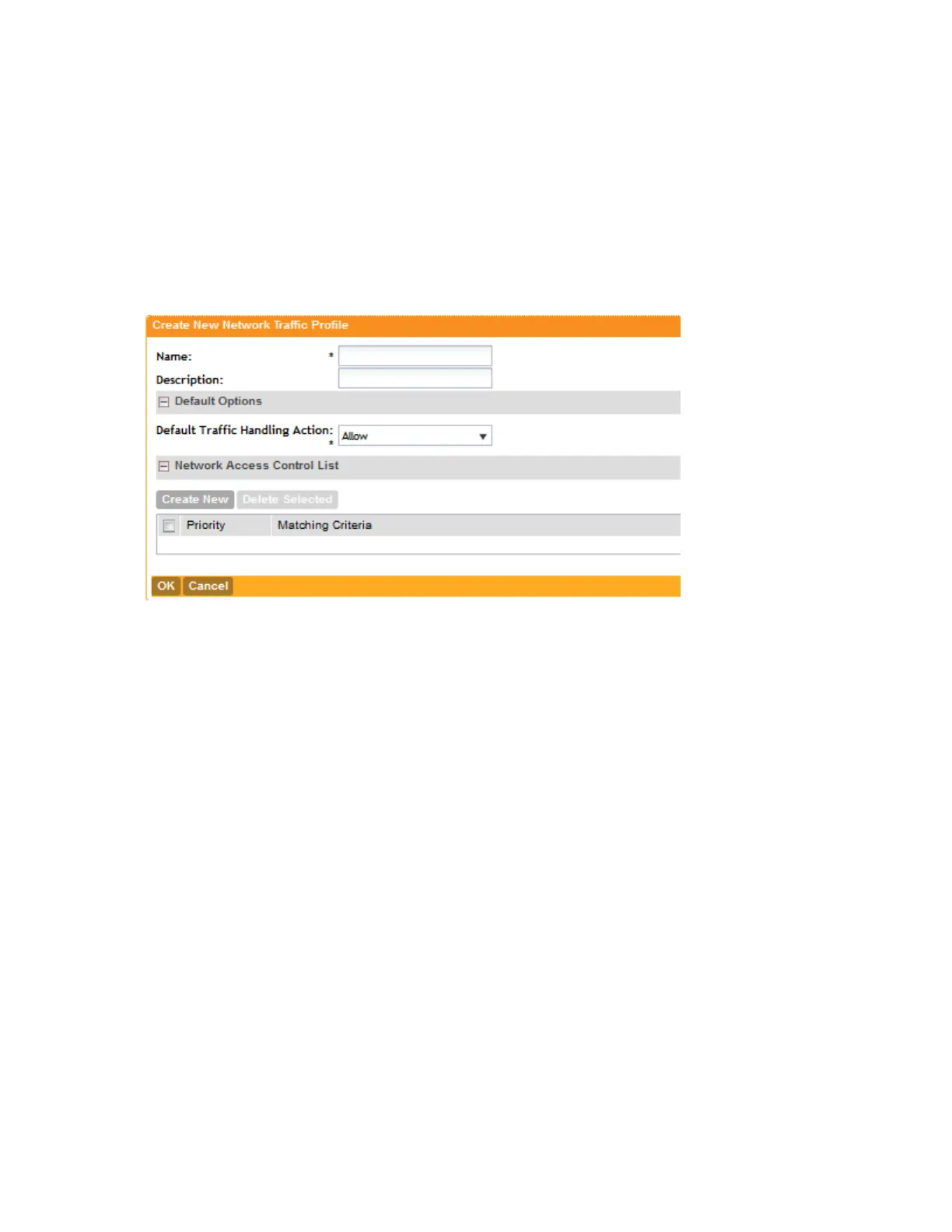

Figure 84: The Create New Network Traffic Profile form
Viewing Network Traffic Profiles
A network traffic profile defines per AP rate limits and the access control list (ACL) rules that
apply to that AP.
Follow these steps to view a list of network traffic profiles that have been created on the controller.
NOTE: If you have not created a network traffic profile, refer to Creating a Network Traffic Profile.
1. Go to Configuration > Services & Profiles.
2. On the sidebar under Profiles, click Network Traffic.
The Network Traffic Profiles page appears and displays the hotspot profiles that you have
create. For each network traffic profile, the following details are displayed:
• Profile Name
• Description
• Default Action
• Last Modified By
• Last Modified On
• Actions: Displays the trash binand cloneicons. Click the trash binicon to delete the
profile. Click the cloneicon to create a copy of the profile.
You have completed viewing a list of network traffic profiles.
SmartCell Gateway 200/Virtual SmartZone High-Scale for Release 3.4.1 Administrator Guide
183
Configuring Services and Profiles
Working with Profiles
