10. In the box provided, type a URL or IP address to which you want to grant unauthenticated
users access.
You can add up to 128 network destinations to the walled garden. Network destinations can
be any of the following:
• A single IP address (for example, 10.11.12.13)
• A Classless Inter-Domain Routing (CIDR) notation (for example, 10.11.12.100/28)
• An IP address and subnet mask (for example, 10.11.12.13 255.255.255.0)
• An exact website address (for example, www.ruckuswireless.com)
• Website address with regular expression (for example, *.ruckuswireless.com, *.com,
*)
After the account is established, the user is allowed out of the walled garden. URLs will be
resolved to IP addresses. Users will not be able to click through to other URLs that may be
presented on a page if that page is hosted on a server with a different IP address. Avoid using
common URLs that are translated into many IP addresses (such as www.yahoo.com), as
users may be redirected to re-authenticate when they navigate through the page.
11. Click Create New.
You have completed configuring a hotspot service of the AP zone.

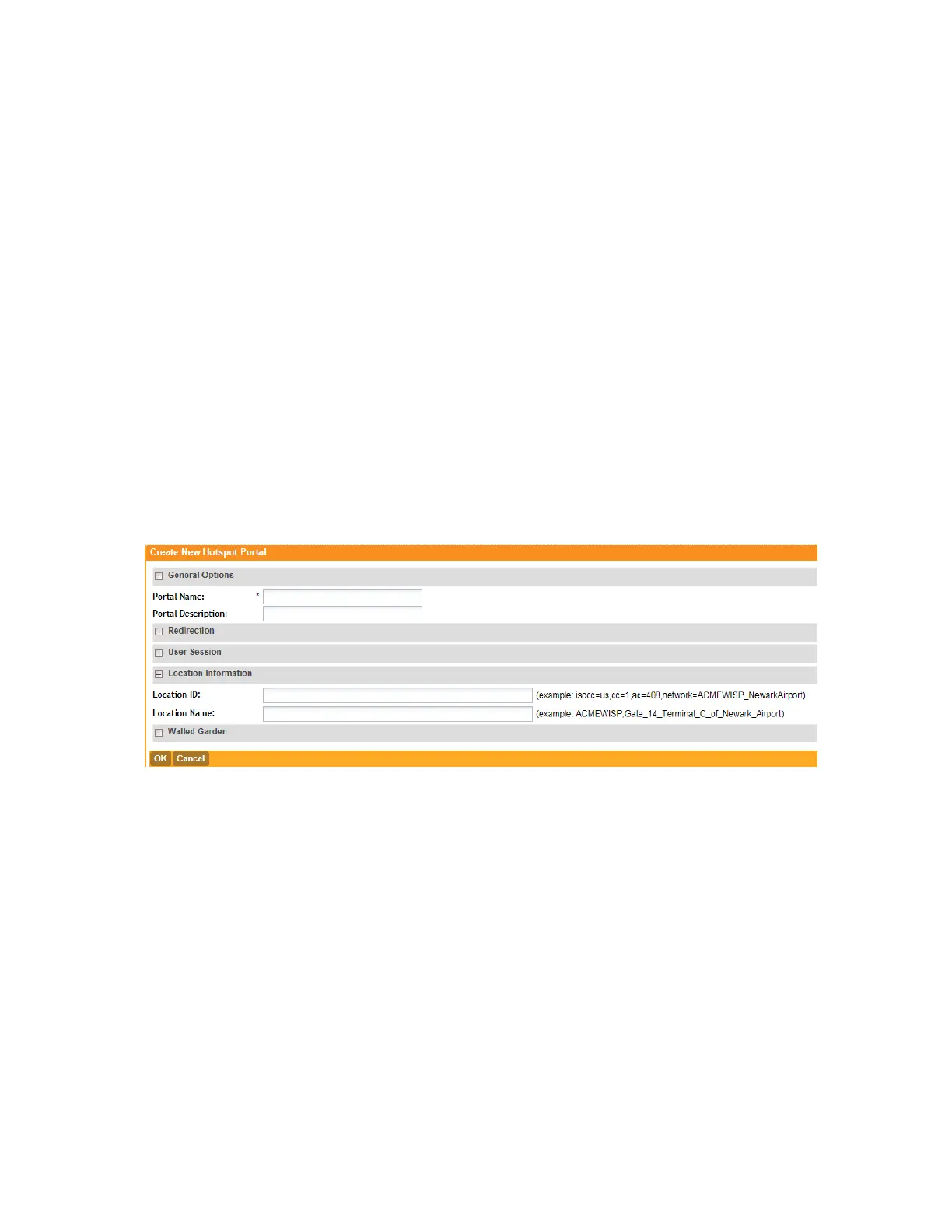

Figure 251: The Create New Hotspot Profile form
AP Zone WLAN Services & Group
Follow these steps to configure tunneling combination for Captive Portal.
NOTE: There is only 1configuration combination allowed for usage of this feature.
1. Click Configuration > AP Zones > WLAN.
2. On the AP Zone List page, select the AP zone in the WLAN Services & Group page.
3. In WLAN Usage options:
• Access Network - Enable Tunnel WLAN traffic through Ruckus GRE.
• Core Network - Enable Bridge option
• Authentication Type - Enable Hotspot (WISPr)
4. In Authentication options:
SmartCell Gateway 200/Virtual SmartZone High-Scale for Release 3.4.1 Administrator Guide
398
Overview of the Captive Portal
Configuring the Captive Portal
