Xerox Phaser 6300 Service Manual

5-4 Phaser 6300/6350 Color Laser Printer Service Manual
Repeating Defects
Test Prints
A variety of test prints are available to aid in determining the quality of output from
the printer and to assist in troubleshooting problems. This section shows how to select
and analyze test prints.
On the Control Panel, select Troubleshooting, select Service Tools, and then
Service Test Pages.

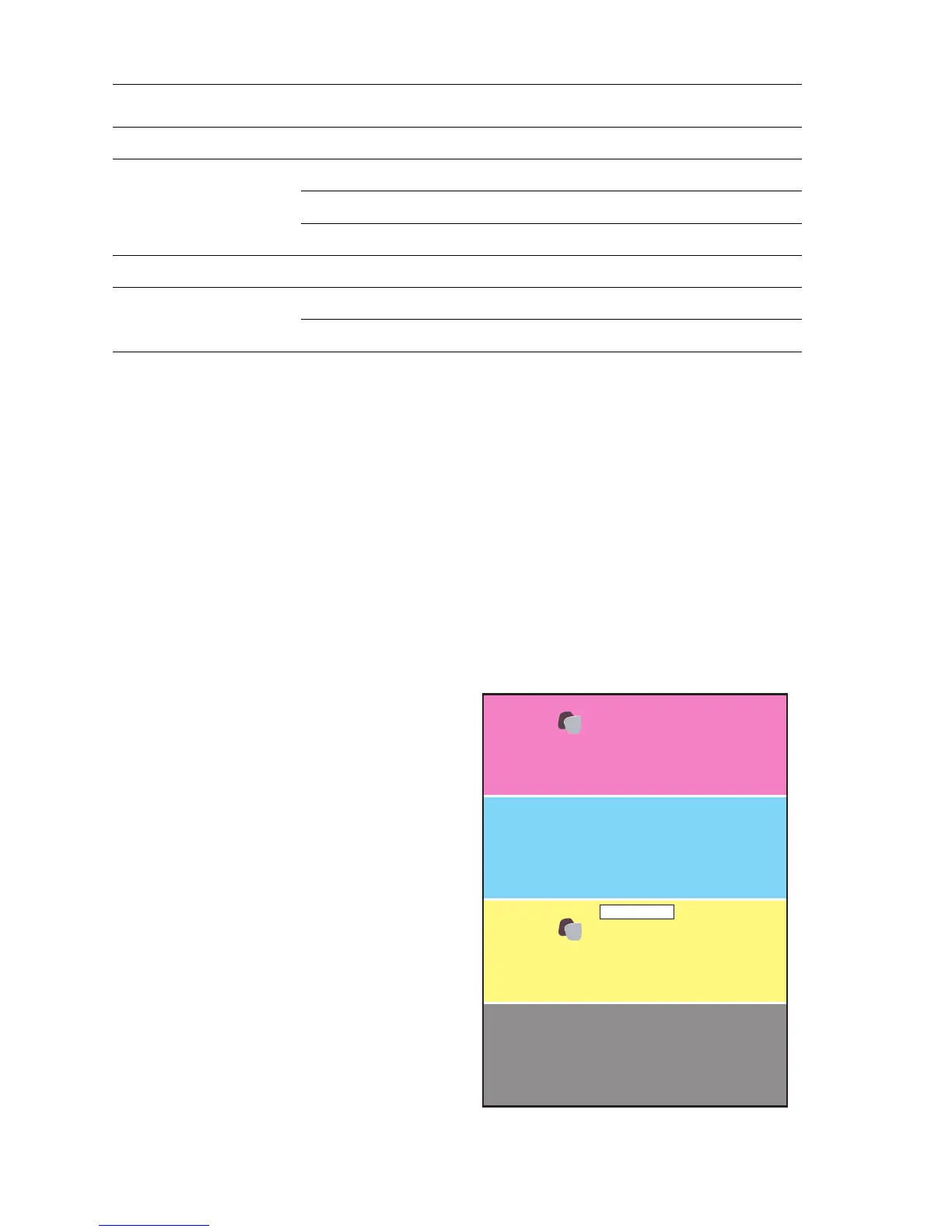

Test Print 1: CMYK Sample Page
This page consists of four 25% tint primary
color bands.
Analyzing the Test Print
■ Repeating defects
■ Missing Color(s)
■ Streaks
■ Voi d s
■ Banding
Maintenance Item Component Distance between Defects
Developer Assembles Magnetic (Mag) Roller [YMCK] 34 mm (1.34 in.)
Imaging Unit Drum Charge (RTC) Rollers 31 mm (1.22 in.)
OPC Drum Rollers 74 mm (2.91 in.)
IDT Rollers 132 mm (5.20 in.)
Transfer Roller Transfer Roller 64 mm (2.52 in.)
Fuser Heat Roller 83 mm (3.26 in.)
Belt 94 mm (3.70 in.)
s6300-101
Xerox Phaser 6300DP
Service Prints[Page 1/3]
Media Type: Paper, Letter
