Xerox Phaser 6300 - Low Paper Sensor (PL3.3.7)

Service Parts Disassembly 8-29
Low Paper Sensor (PL3.3.7)
Remove the Low Paper Sensor from the Paper Pick Assembly by reaching in from the
front of the printer and squeezing the side hooks of the sensor.
1. Remove Tray 2.
2. Remove the Feeder Chute (page 8-21).
3. Remove the Upper Chute (page 8-30).
4. Release the 3 hooks and disconnect (P/J473) from the Low Paper Sensor.
Replacement Note
Insert the sensor end hook first, and then lock the side hooks.

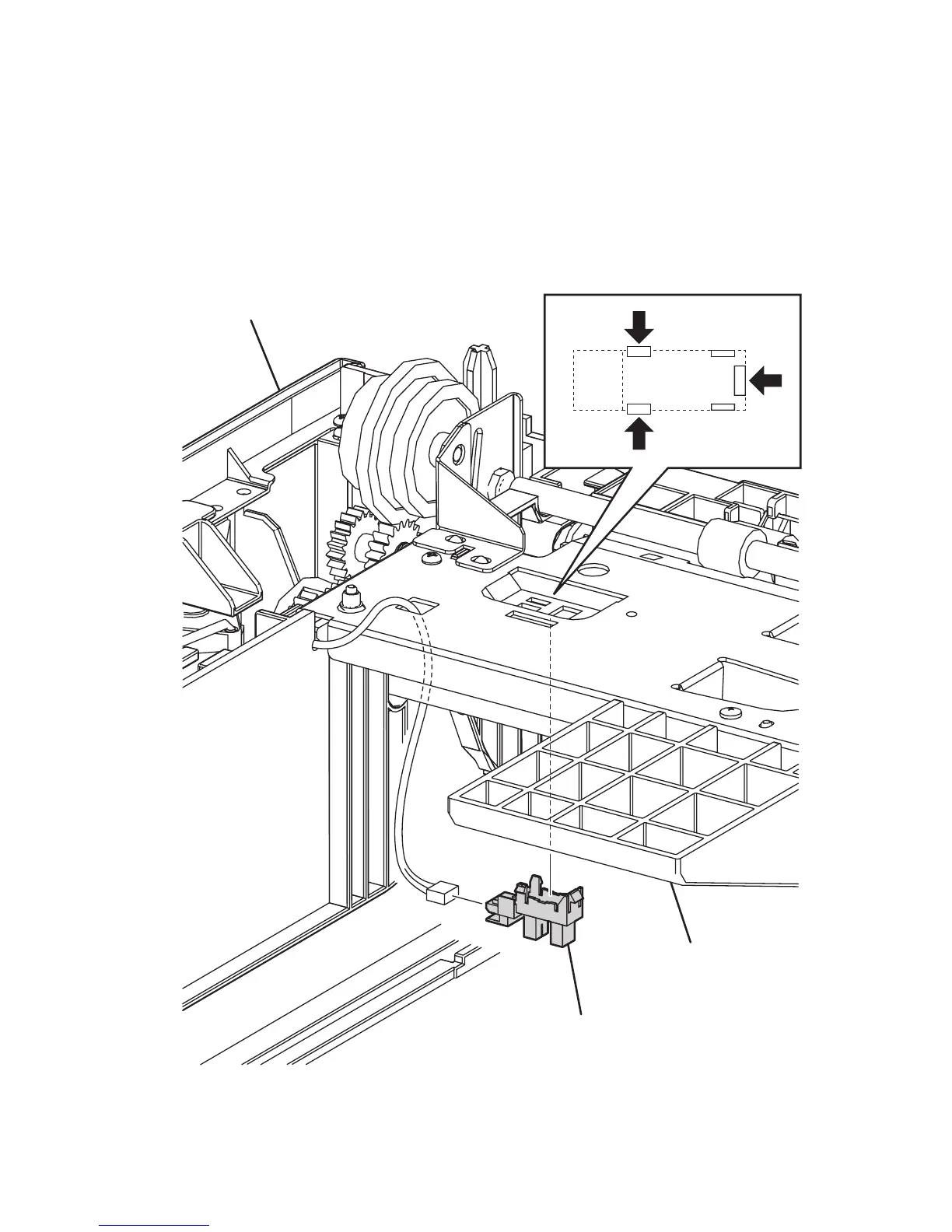

s6300-148
Low Paper Sensor
Paper Pick Assembly
Feeder
