Temperature/Humidity Sensor (PL9.1.20)
1. Remove the Top Main Cover (page 8-8).
2. Remove the Left Side Cover (page 8-13).
3. Press down the knob mounted on the left side of the printer to release the bracket
that holds the sensor.
4. Lift the bracket from the printer chassis.
5. Release the 4 hooks that secure the Temperature/Humidity Sensor to the bracket
and remove the sensor.
6. Unplug the Temperature/Humidity Sensor connector (CN1).

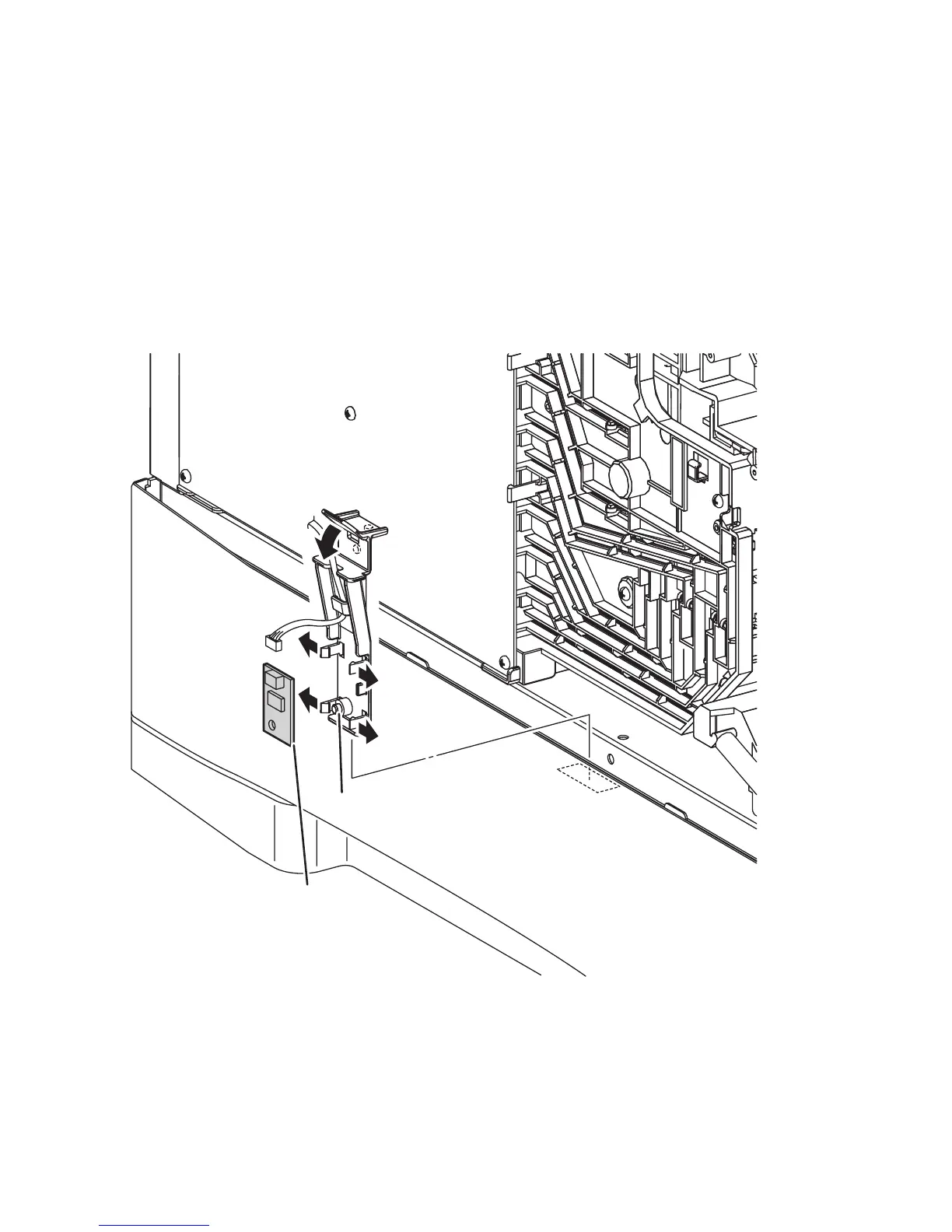

s6300-222
Humidity Sensor
CN1
Boss
