Xerox Phaser 6300 Service Manual

Theory of Operation 2-37
Transfer Roller and Fuser Assembly
■ Exit Sensor
Detects passage of the print media after fusing.
■ Transfer Roller
Consists of the Transfer Roller and a waste toner recovery system. The Transfer
Roller transfers the image from IDT2 in the Imaging Unit onto the print media.
■ Fuser Fan
Cools the Fuser Assembly to prevent overheating.
■ Fuser
Using heat and pressure, the Fuser fixes the transferred toner onto print media.

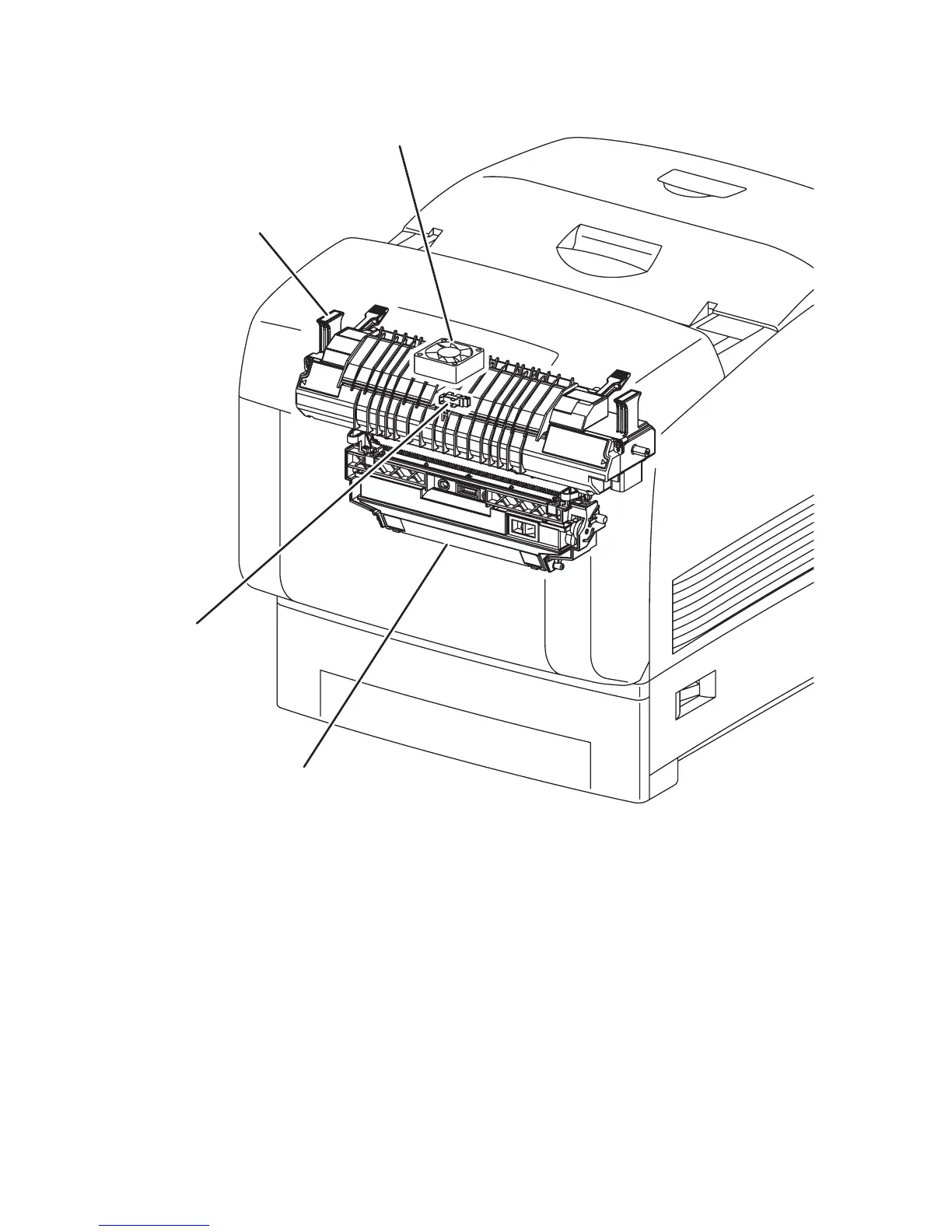

Fuser Assembly
Fuser Fan
Transfer Roller Assembly
Fuser Exit
Sensor
s6300-061
