2-48 Phaser 6300/6350 Color Laser Printer Service Manual
Electrical
â– Image Processor Board
Receives data from the workstation or host, rasterizes the data and passes it on to
the Engine Control Board. The microprocessors on the Image Processor Board,
generate the control signals used by the Engine Control Board. Also located on
the Image Processor Board are the system NVRAM chip, optional Memory, and
optional Hard Drive.
â– EEPROM Board
Consumable use (Fuser and Imaging Unit NVRAM data) information is stored
and communicated to the Engine Control Board.
â– Rear Fan
Removes heat from the printer to prevent over-heating.

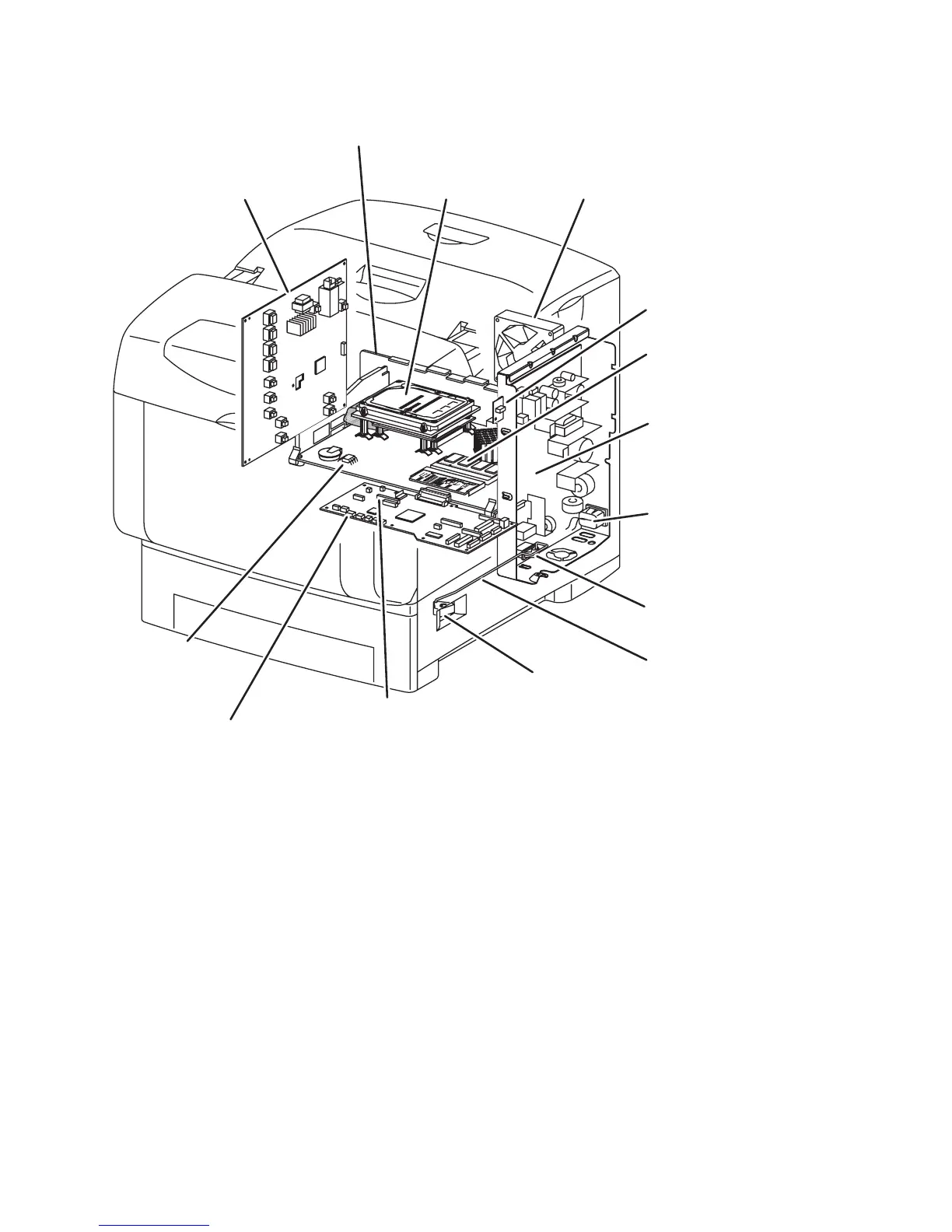

s6300-065
High Voltage
Power Supply Board
Engine Control Board
Image Processor Board
Low Voltage
Power Supply
Power Switch Actuator
EEPROM Board
Rear Fan
Memory
Hard Drive
Engine Control Board
NVRAM
I/P Board
NVRAM
Power Switch Link
Power Switch
AC Switch Harness
To Next Page
