8-38 Phaser 6300/6350 Color Laser Printer Service Manual
Registration Roller Assembly (PL4.2.1)
Caution
After removal of the Imaging Unit, protect the Developer Assemblies by
covering the rollers with a sheet of paper or other similar technique.
1. Open Door A.
2. Remove the Imaging Unit.

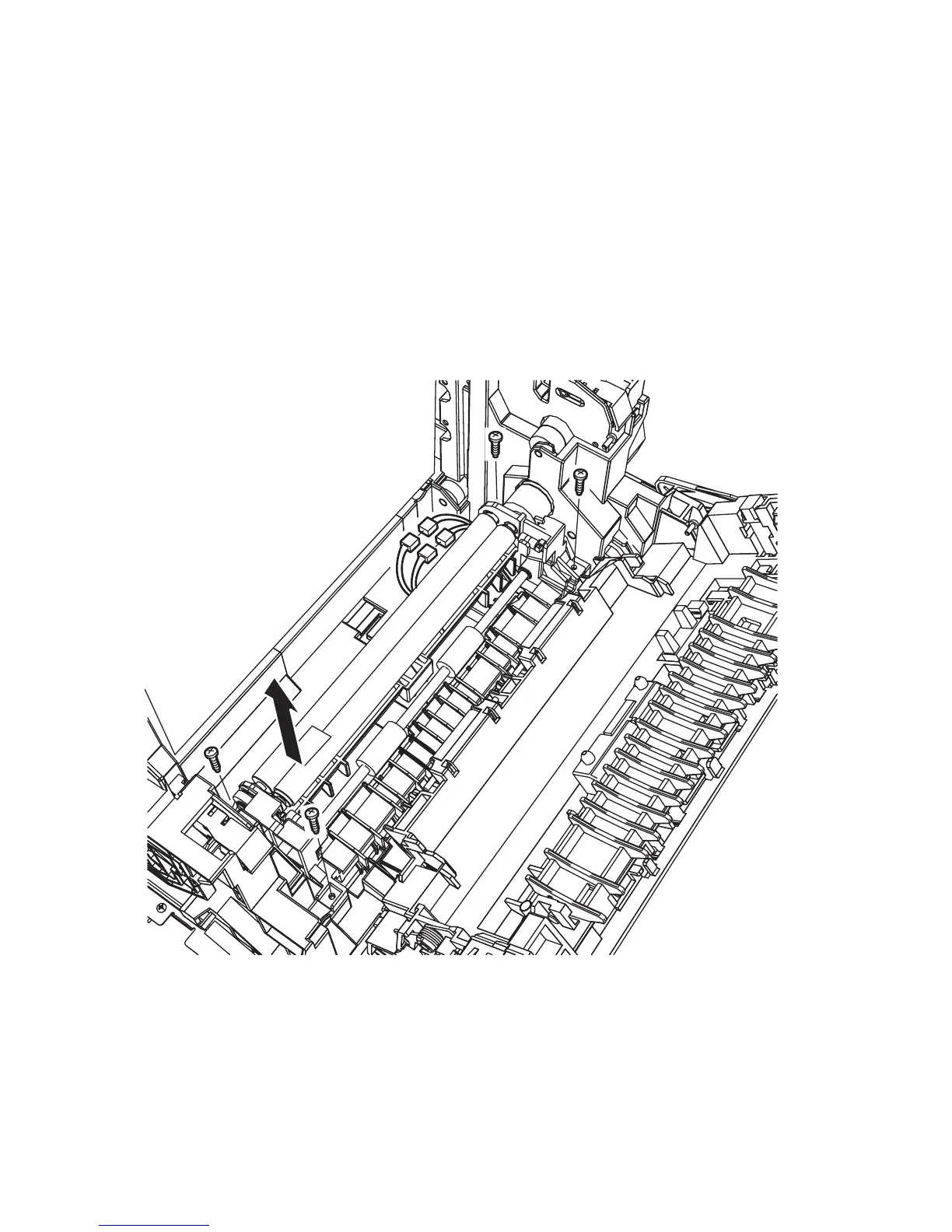

3. Remove 4 screws (self-tapping, plastic 10 mm) that secure the Registration
Roller Assembly.
4. Disconnect the two connectors connected to Registration Roller Assembly.
5. Move the Registration Roller Assembly to the left and lift it up to remove.
Replacement Note
Insert the Registration Clutch into the opening first. Lower the opposite end
as the clutches mesh with the gears. Carefully re-route the sensor harnesses
through the bottom harness guides to prevent damage to the wiring or
Imaging Unit seating errors.
s6300-159
To Next Page
