Xerox Phaser 6300 - No Paper Sensor Actuator (PL12.5.20)

8-132 Phaser 6300/6350 Color Laser Printer Service Manual
No Paper Sensor Actuator (PL12.5.20)
1. Remove the Paper Pick Assembly (page 8-122).
2. Release the hook that secures the No Paper Sensor Actuator to the Paper Pick
Assembly.
3. Push the actuator shaft slightly away from the sensor to move the shaft to the
larger opening in the slot.
4. Remove the actuator out of the slot of Paper Pick Assembly while moving the
hook side of actuator toward you.

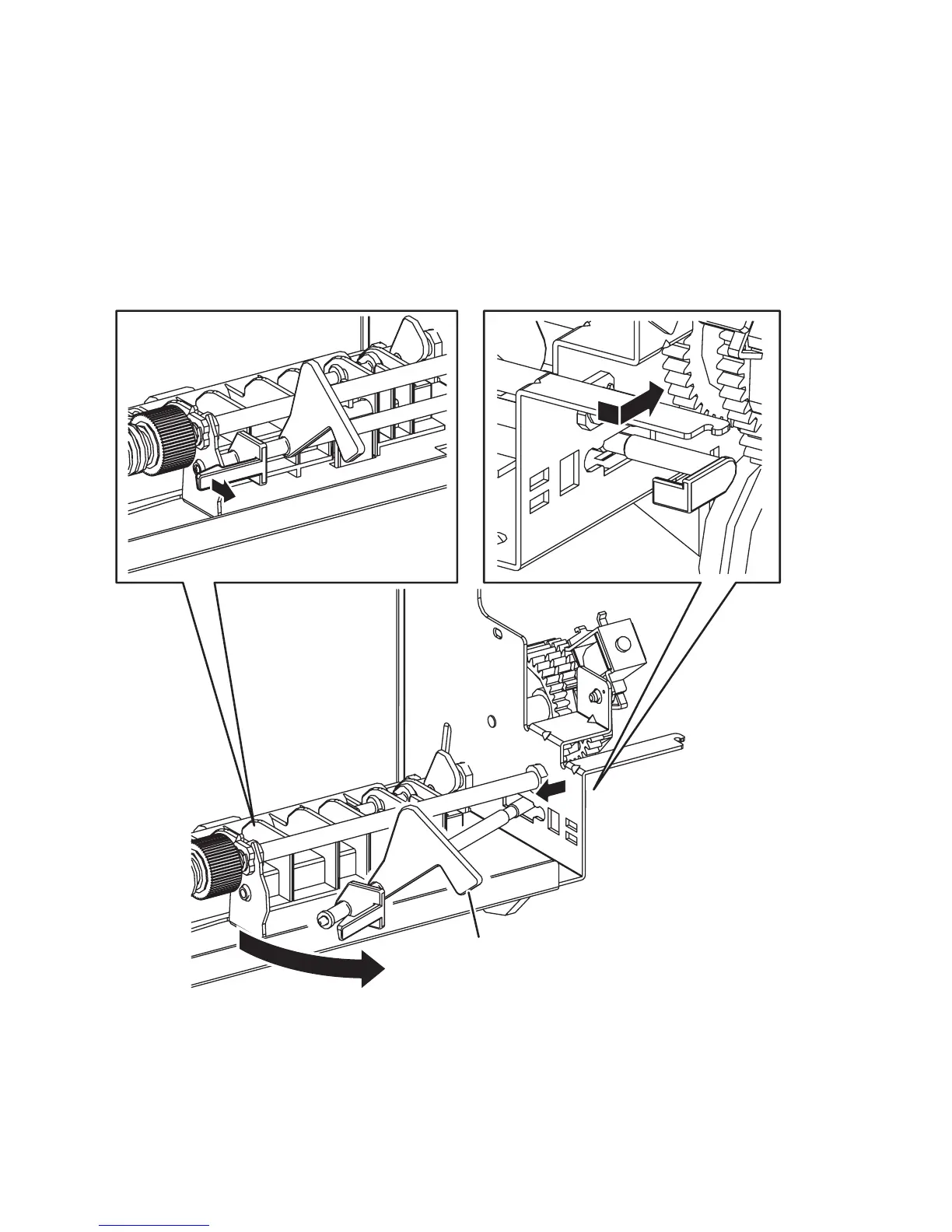

s6300-153
No Paper Actuator
