Xerox Phaser 6300 - Fuser Exit Sensor Actuator (PL5.1.2)

8-68 Phaser 6300/6350 Color Laser Printer Service Manual
Fuser Exit Sensor Actuator (PL5.1.2)
Caution
Allow adaquate time for the Fuser to cool before servicing the printer.
1. Open Door B.
2. Lift the levers at each end of the Fuser and remove the Fuser.

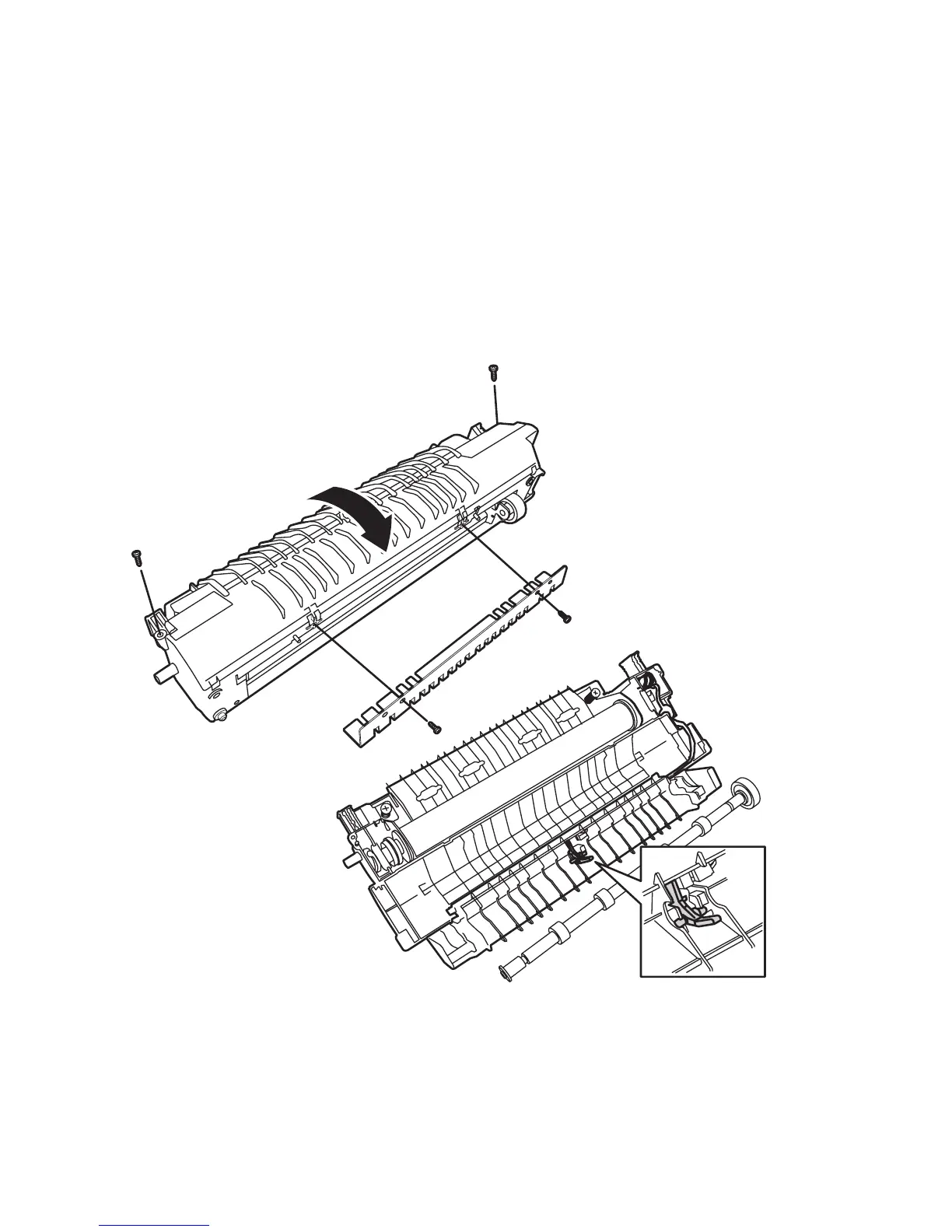

3. Remove the 2 hex-head screws (self-tapping, plastic 10 mm) that secure the
Fuser fingers.
4. Remove the 2 hex-head screws (self-tapping, plastic 10 mm) that secure the
Fuser Cover.
5. Remove the Fuser Exit Roller by unsnapping the shaft from the cover.
Replacement Note
Return the wiring to the recess provided and make sure the Spring is retained
on the Fuser cover. After Fuser replacement, power cycle the printer.
s6300-366
