Service Parts Disassembly 8-121

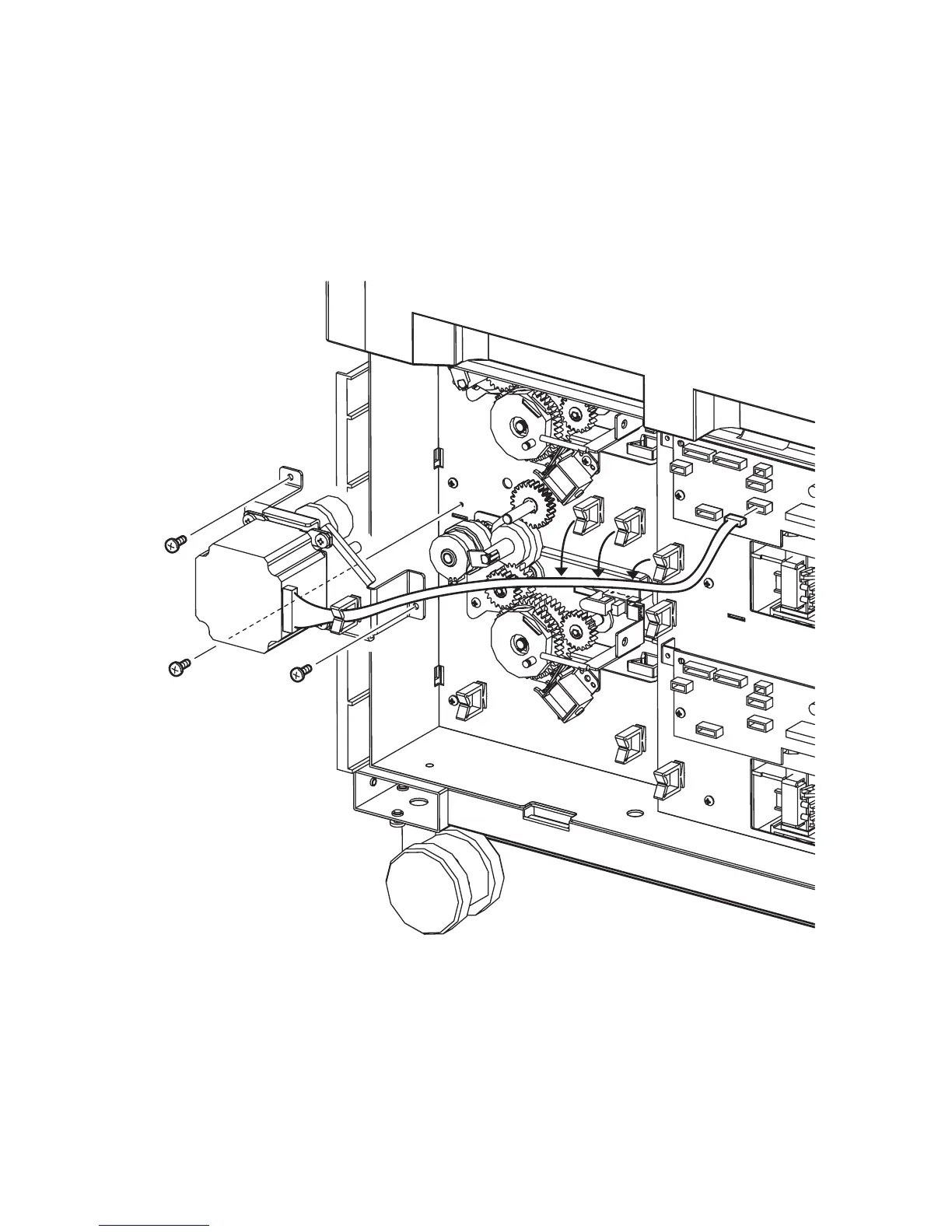

Drive Assembly (PL12.3.9)
1. Remove the Front Covers (page 8-111).
2. Remove the Right Cover (page 8-113).
3. Remove connector (P/J82) that is connected tothe upper Circuit Board HCF.
4. Remove the Drive Assembly harness from the Clamps.
5. Remove the 3 screws (metal, 6mm) that secure the Drive Assembly to the frame.
s6300-260
