Service Parts Disassembly 8-13
Left Side Cover (PL1.1.30)
1. Remove the Top Main Cover (page 8-8).
2. Remove the screw (metal, 6 mm) that fixes the Left Side Cover.
3. Slide the cover rearward to release the hook on the front that also holds the Left
Side Cover and remove.

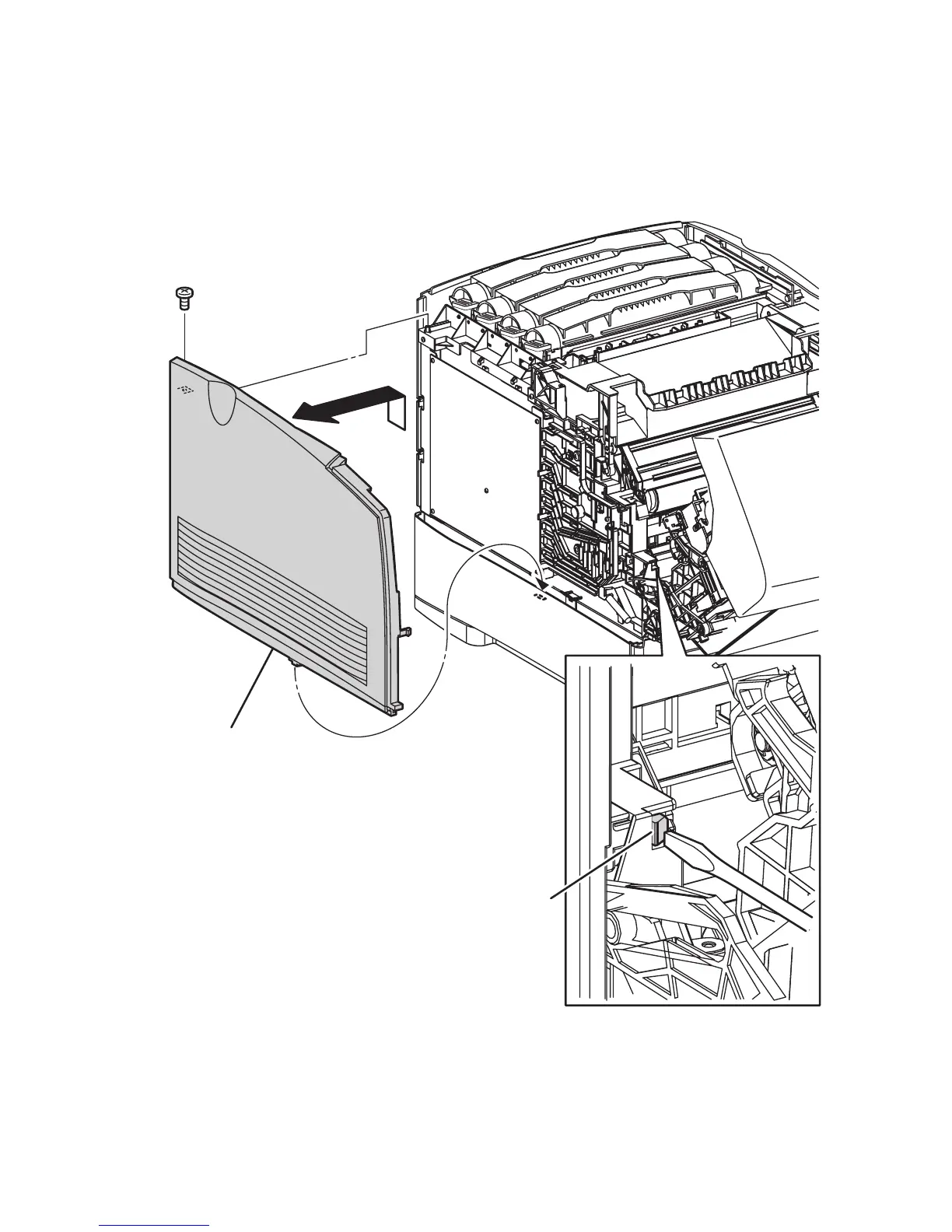

s6300-136
Left Side Cover
Hook
