Xerox Phaser 6300 Service Manual

Service Parts Disassembly 8-133

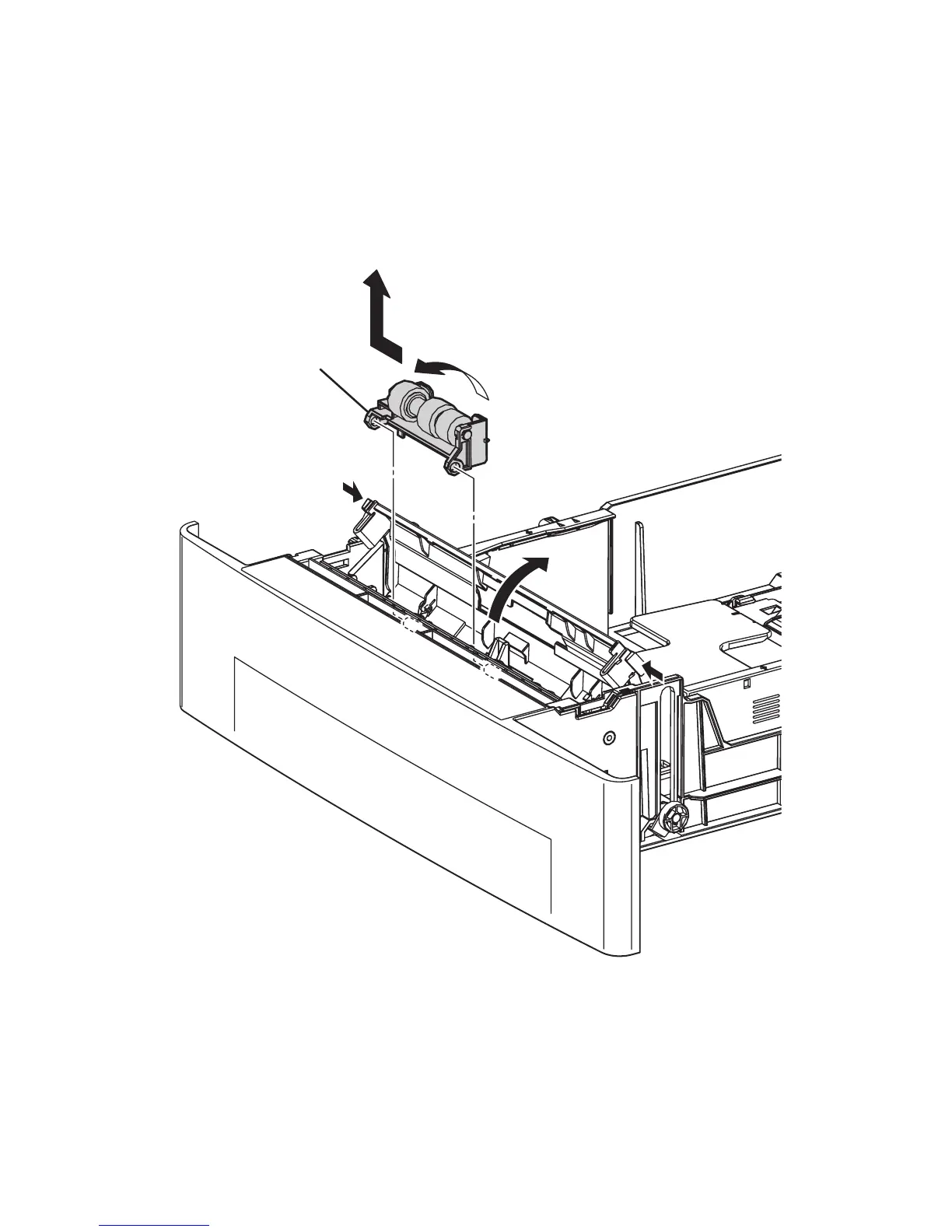

Retard Roller Assembly (PL12.6.13)
1. Remove the tray.
2. Release the 2 hooks at the left and right of the Turn Chute by pushing inward and
open the chute.
3. Rotate the Retard Holder 90 degrees.
4. Slide the Retard Roller Assembly to the left and remove it from the 2 bosses, and
then lift it upward.
s6300-138
Retard Assembly
