Service Parts Disassembly 8-95
Main Drive Assembly (PL8.1.2)
1. Remove the Top Main Cover (page 8-8).
2. Remove the Right Side Cover (page 8-12).
3. Disconnect the Main Drive Assembly connector (P/J481).
4. Remove the 4 screws (silver, tap 10 mm) that secure the Main Drive Assembly to
the printer.
5. Remove the Main Drive Assembly.
Replacement Note
When replacing the motor, rotate the motor housing to engage the Main
Drive gears. Verify that the gears are engaged before installing the mounting
screws.

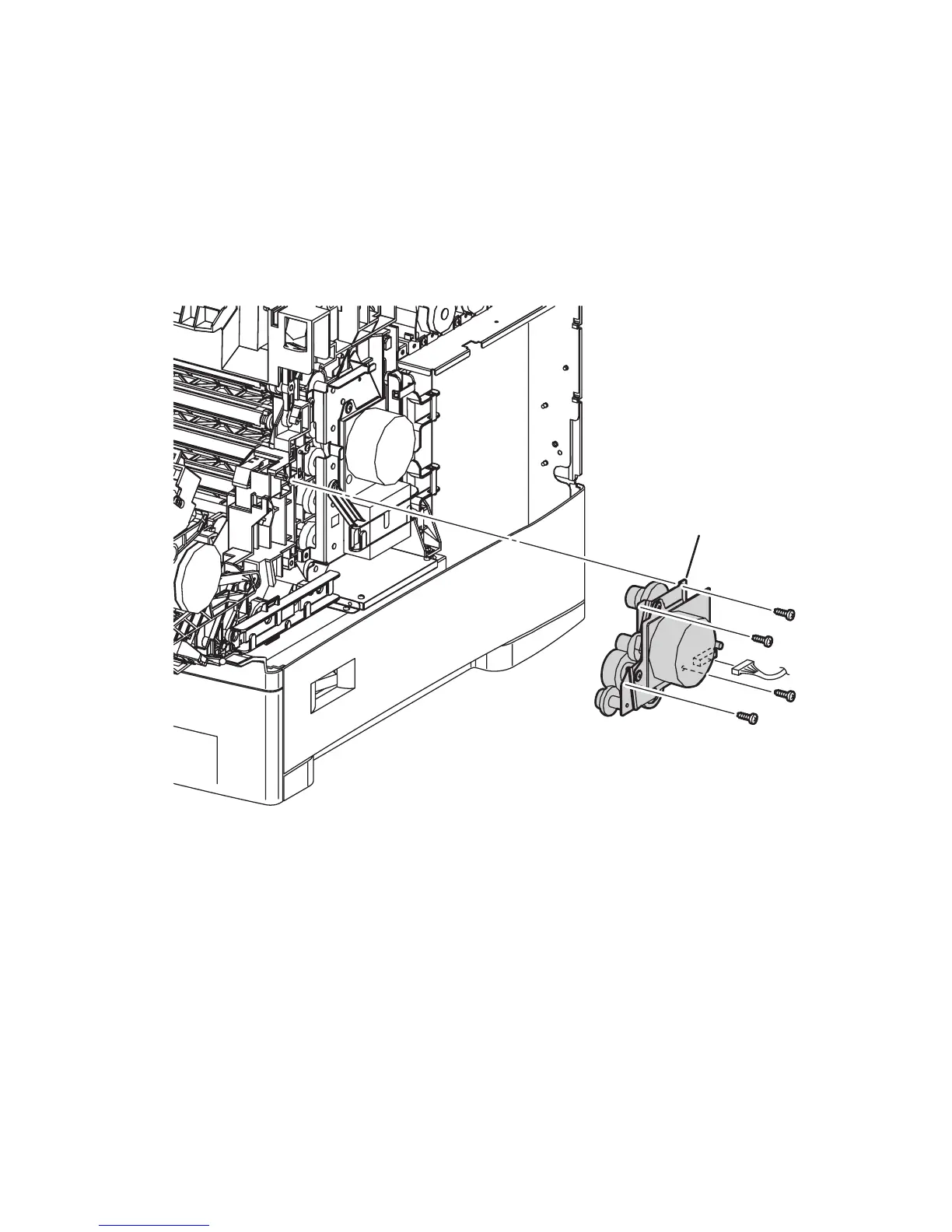

s6300-211
Main Drive Assembly
P/J481
To Next Page
