Registration Roller Assembly

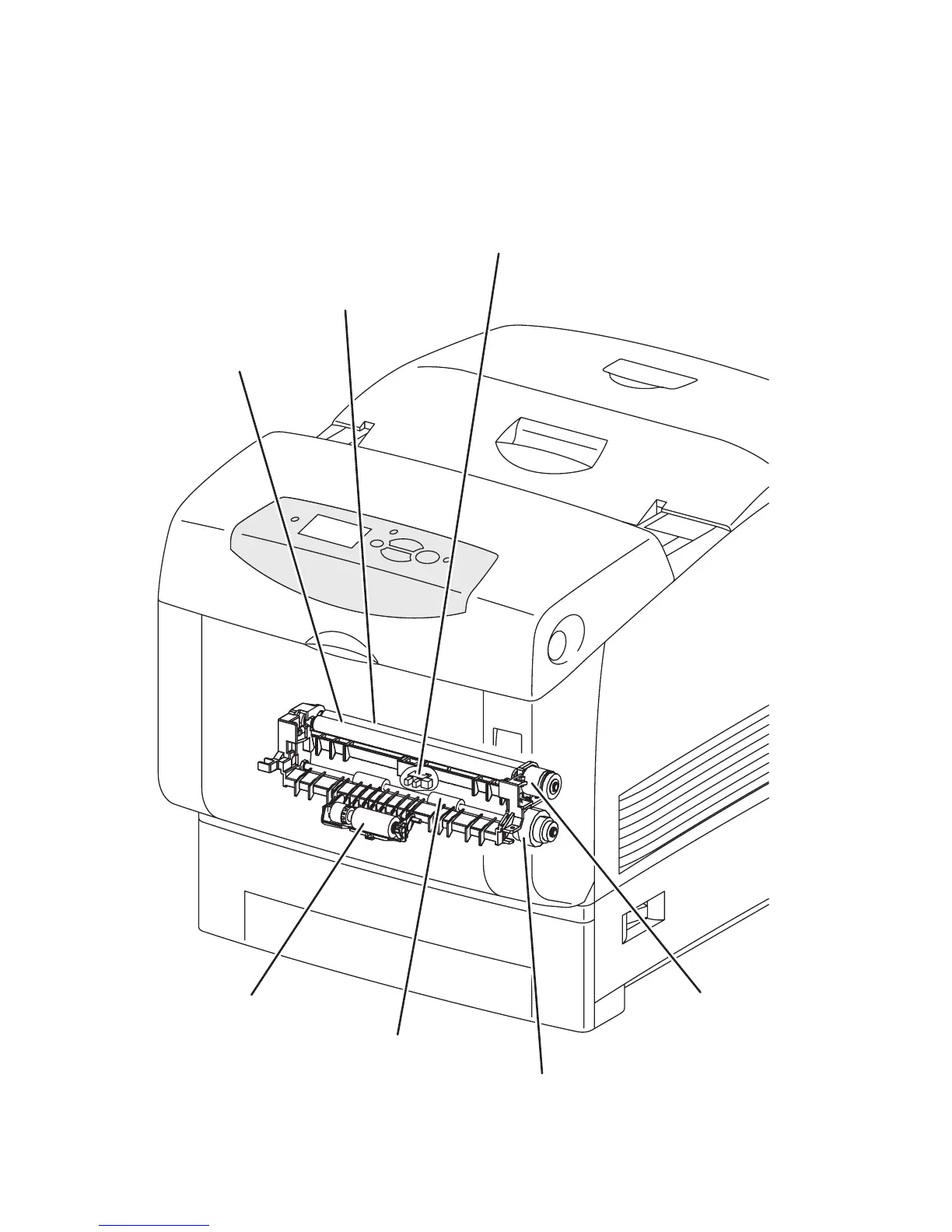

Shown in the following figure are the components associated with aligning the paper
in preparation for image transfer (Registration), and feeding paper from
Tray
1 (MPT). The Registration, Turn and Retard rollers are driven by the Main Drive
Motor.
s6300-058
Retard Roller Assembly
Metal Registration Roller
Rubber Registration Roller
Tray 1 (MPT) Turn Roller
Registration Clutch
Turn Clutch
Registration Sensor
