Xerox Phaser 6300 - CTD (ADC) Sensor (PL5.2.19)

Service Parts Disassembly 8-71
CTD (ADC) Sensor (PL5.2.19)
1. Open Door A.
2. Remove the Transfer Roller (page 8-70).
Note
The spring providing tension to the CTD (ADC) Sensor is not captive. Use care
when removing the sensor to avoid the spring falling into the printer.

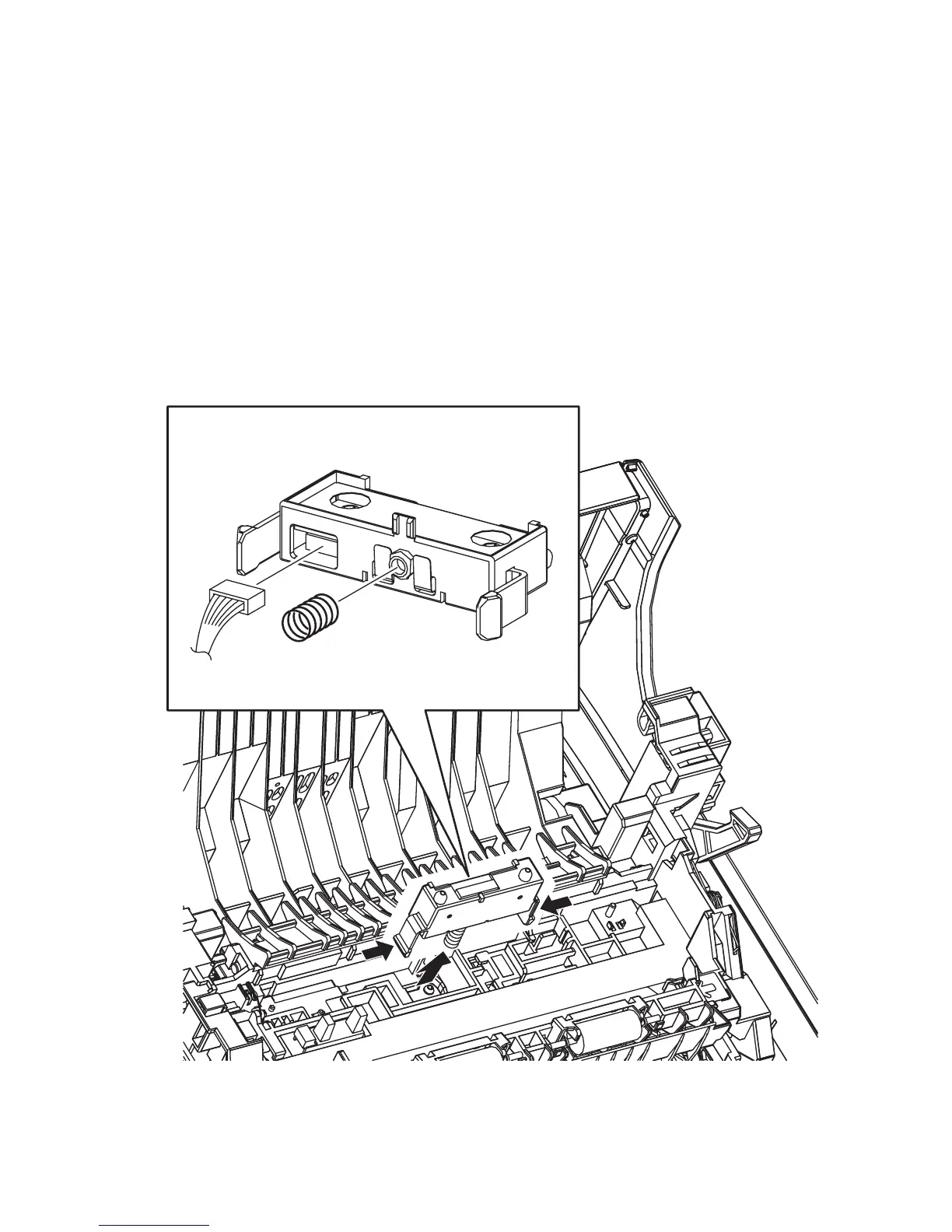

3. Pinch the 2 hooks that secure the CTD (Toner Density Control) (ADC) Sensor to
the Chute Assembly In and remove it.
4. Unplug connector (P/J136) from the CTD (ADC) Sensor and release the harness
from the cable guide.
s6300-167
