8-30 Phaser 6300/6350 Color Laser Printer Service Manual

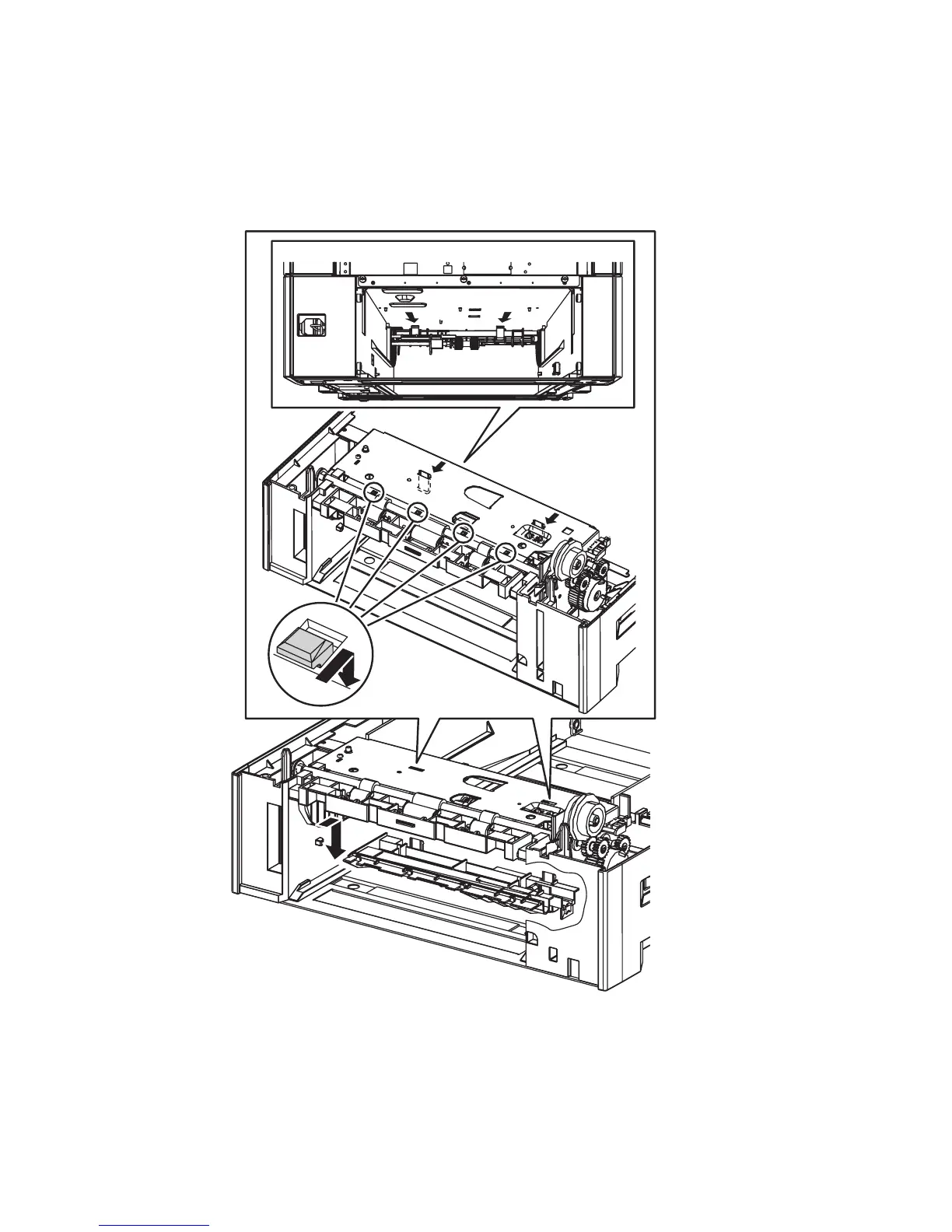

Upper Chute (PL3.3.15)
1. Remove the tray.
2. Release the 2 hooks that secure the Upper Chute to the Paper Pick Assembly.
Slide the Upper Chute first to the back, release the 4 hooks, and then remove the
Upper Chute downward.
s6300-151
Note
Hooks
