Xerox Phaser 6300 - Paper Pick Assembly HCF T1 (PL12.4.1)

8-122 Phaser 6300/6350 Color Laser Printer Service Manual
Paper Pick Assembly HCF T1 (PL12.4.1)
1. Seperate the 1100-Sheet Feeder from the printer (page 8-110).
2. Remove the Front Covers (page 8-111).
3. Remove the Right Cover (page 8-113).
4. Remove the Left Cover (page 8-112).
5. Remove the Feeder Chute (page 8-115).
6. Remove the Upper Chute (page 8-30).

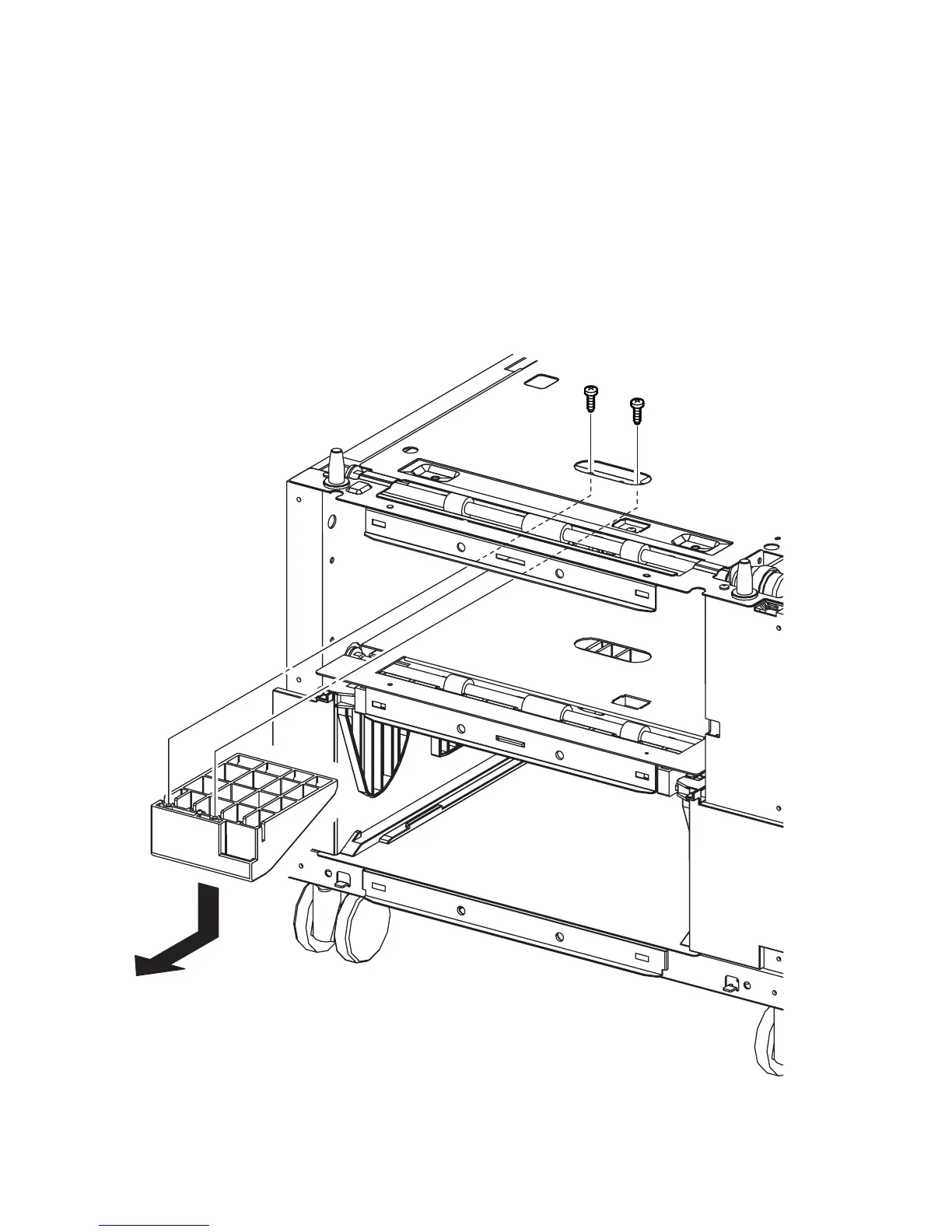

7. Remove 2 screws (self-tapping, plastic 8 mm) that secure Paper Guide to the
Paper Pick Assembly HCF T1 and remove the Paper Guide.
8. Remove the upper Left Feeder Assembly (page 8-116).
s6300-262
