Xerox Phaser 6300 Service Manual

Service Parts Disassembly 8-143
No Paper Sensor (PL11.3.7)
1. Remove the 550-Sheet Feeder (page 8-134).
2. Remove the Right Cover (page 8-135).
3. Remove the Left Cover (page 8-136).
4. Remove the Drive Assembly (page 8-146).
5. Remove Paper Pick Assembly (page 8-141).
6. Disconnect the No Paper Sensor connector (P/J822).
7. Lift the No Paper Sensor Actuator and release the three hooks to remove the
sensor.

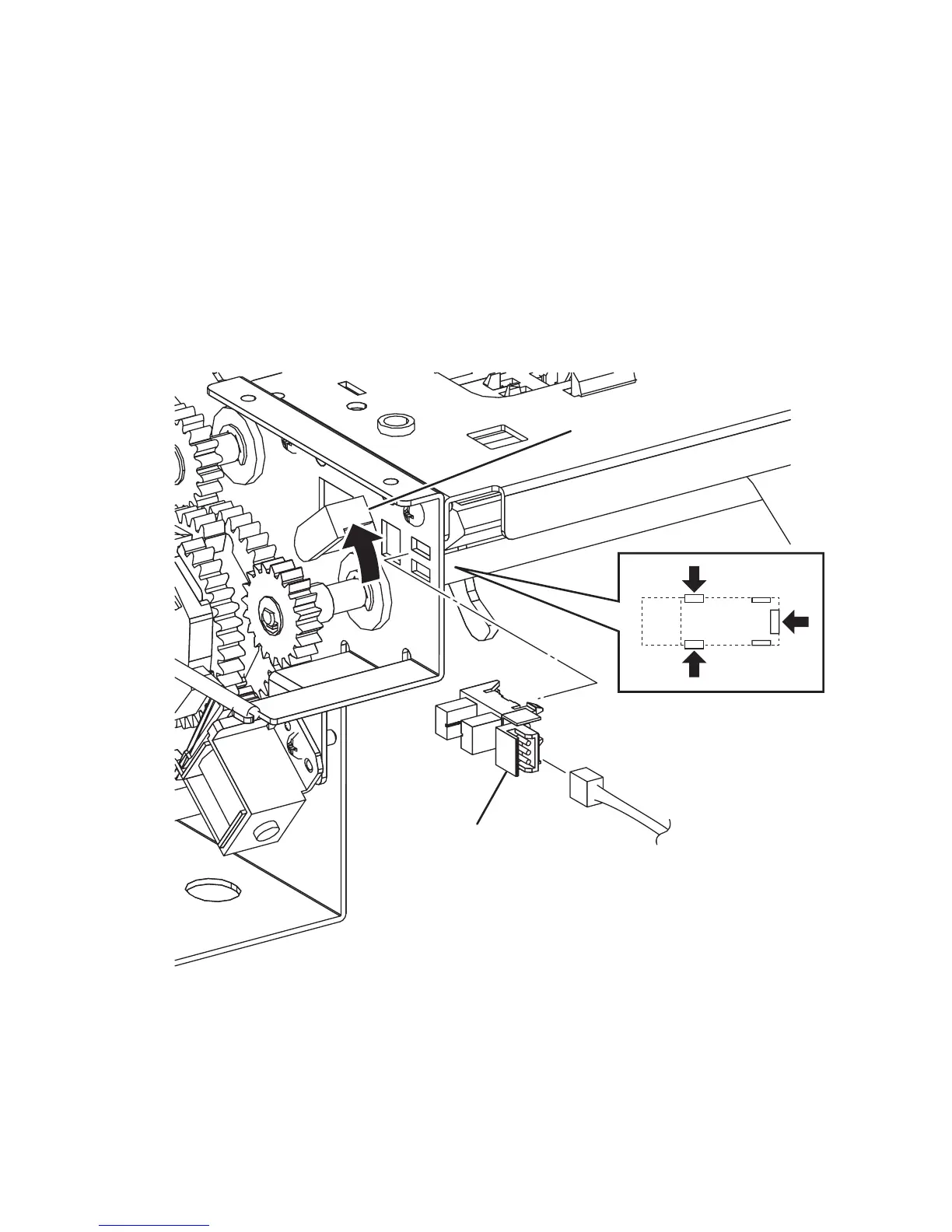

s6300-237
P/J822
No Paper Sensor
No Paper Actuator
