2-34 Phaser 6300/6350 Color Laser Printer Service Manual
Chute Assembly Out
â– Full Stack (Output Tray Full) Sensor
Detects a full output tray. This is only checked when paper is fed into the exit.
â– Duplex Jam Sensor
Detects when print media has reached the Duplex Roller.
â– Duplex Motor

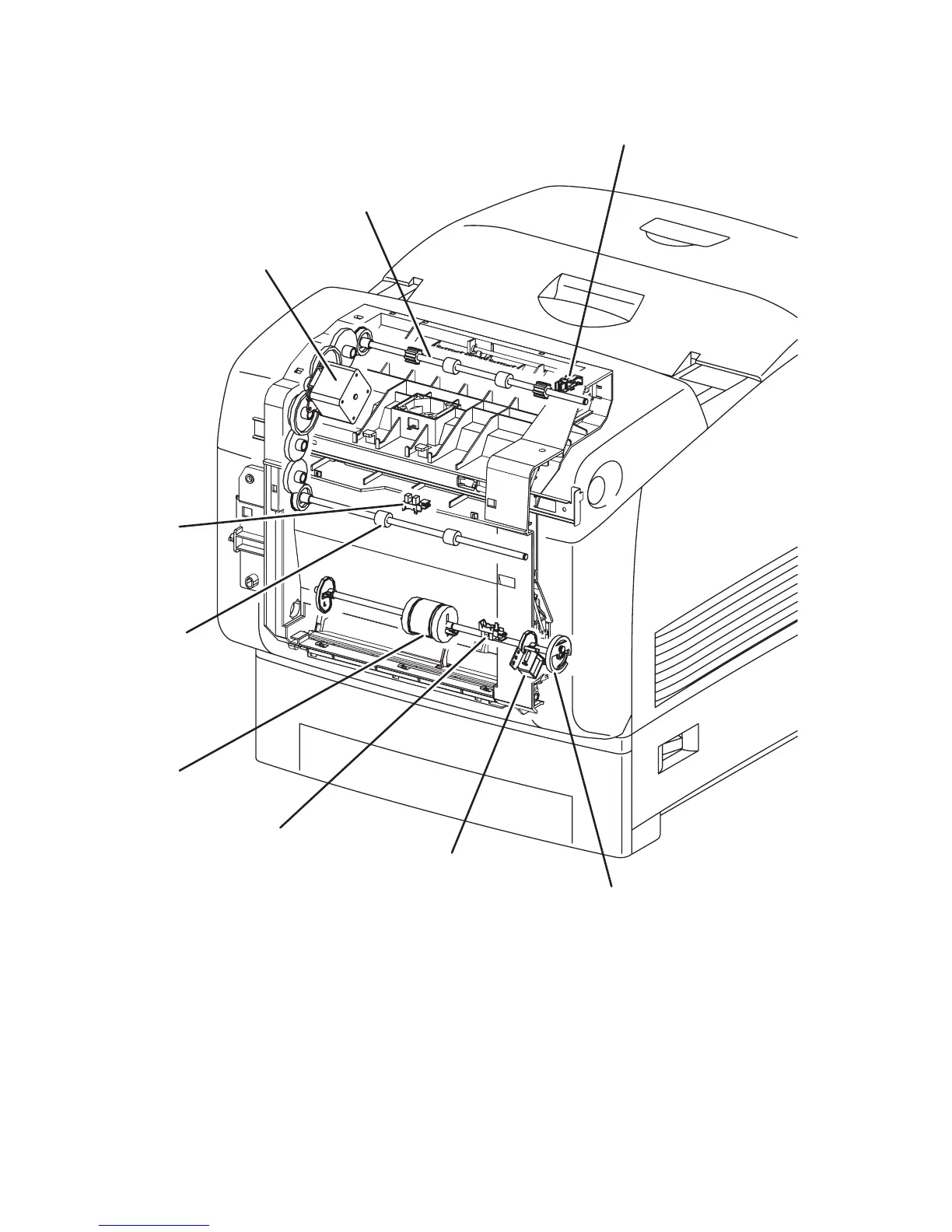

Drives the Exit and Duplex rollers as shown in the following figure.
s6300-060
Full Stack Sensor
Duplex Jam
Sensor
Tray 1 (MPT) No Paper Sensor
Exit Roller
Duplex Motor
Tray 1 (MPT) Feed Solenoid
Gear (MPT)
Duplex Roller
Tray 1 (MPT)
Feed Roller
To Next Page
