Xerox Phaser 6300 - OPTPLG 2 Harness (PL11.1.13)

Service Parts Disassembly 8-139
OPTPLG 2 Harness (PL11.1.13)
1. Remove the 550-Sheet Feeder (page 8-134).
2. Remove the Right Cover (page 8-135).
3. Remove the screw (metal, 6 mm) in the Connector Plate and the screw (self-
tapping, plastic 8 mm) in the OPTFDR 1 Board.
4. Remove the assembly from the Feeder.
5. Remove the OPTPLG 2 Harness connector (P/J84) from OPTFDR 1 Board.
6. Release the hooks, at two positions, securing the option plug to the frame.

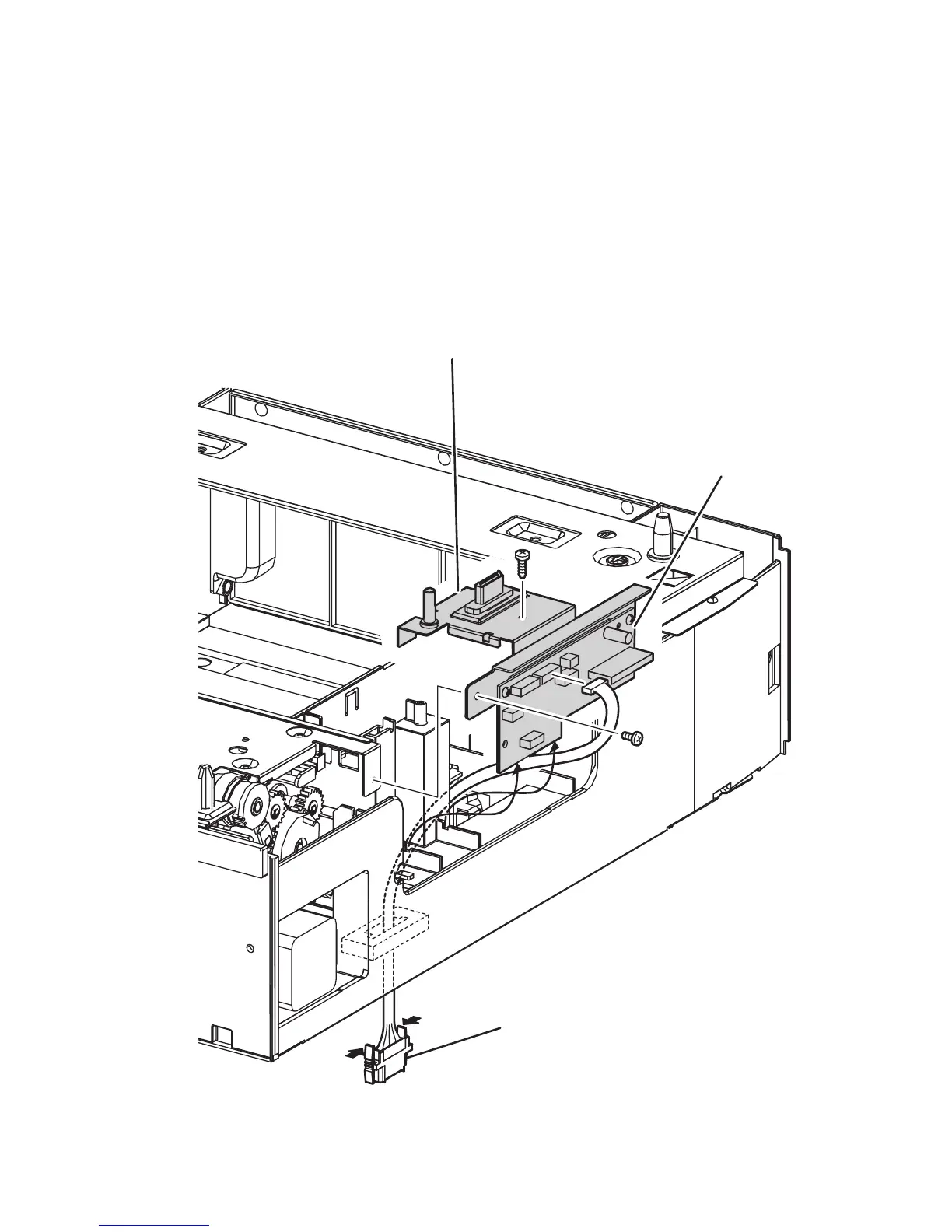

s6300-229
Connector Plate
OPTFDR 1 Board
OPTPLG 2 Harness
