8-102 Phaser 6300/6350 Color Laser Printer Service Manual
Rear Fan (PL1.1.19)
1. Remove the Top Main Cover (page 8-8).
2. Remove the Right Side Cover (page 8-12).
3. Remove the Left Side Cover (page 8-13).
4. Remove the Rear Cover (page 8-16).
5. Remove 2 screws (self-tapping, plastic 35 mm) that secure the Rear Fan to the
Rear Cover.
Replacement Note
Upon reassembly, attach the Rear Fan so its label faces towards the inside of
the printer and the tabs of the Rear Cover engage the frame.

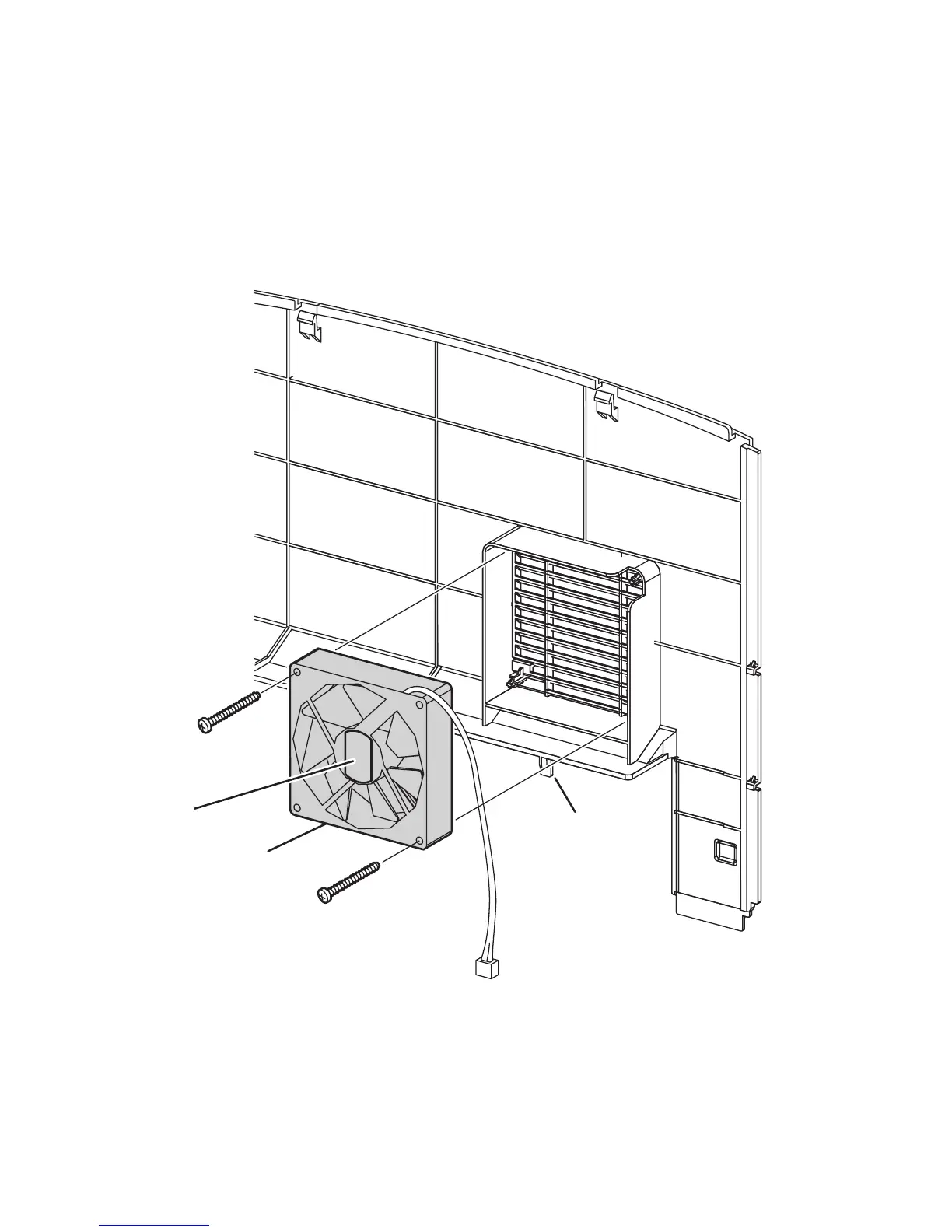

s6300-130
Rear Fan
Tab
Label
To Next Page
