General Information 1-9

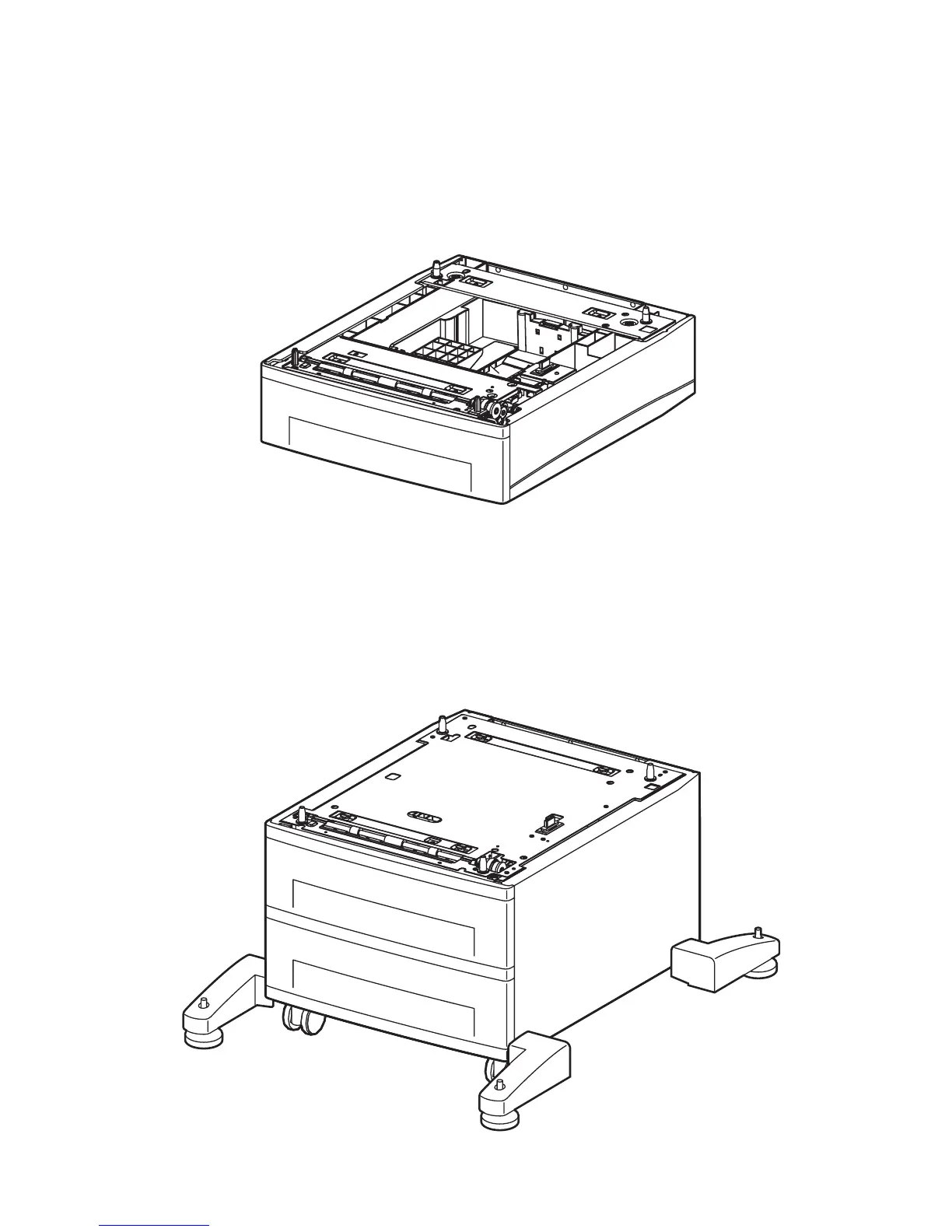

550-Sheet Feeder
The 550-Sheet Feeder (Tray 3) increases the input capacity of the printer. The feeder
attaches below Tray 2 with four screws. When used in combination with the 1100-
Sheet Feeder, the 550-Sheet Feeder is installed between the printer and 1100-Sheet
Feeder. Only one 550-Sheet Feeders per printer is allowed. Electrical connection to
the printer is made by a single interface connector.
1100-Sheet Feeder
The 1100-Sheet Feeder adds two, 550-sheet trays. Control signals reach the sheet
feeder by a single connection. The sheet feeder is secured to the print engine or
550-Sheet Feeder with four screws located under the front and rear edges of the tray.
s6300-018
s6300-019
