8-98 Phaser 6300/6350 Color Laser Printer Service Manual
Electrical

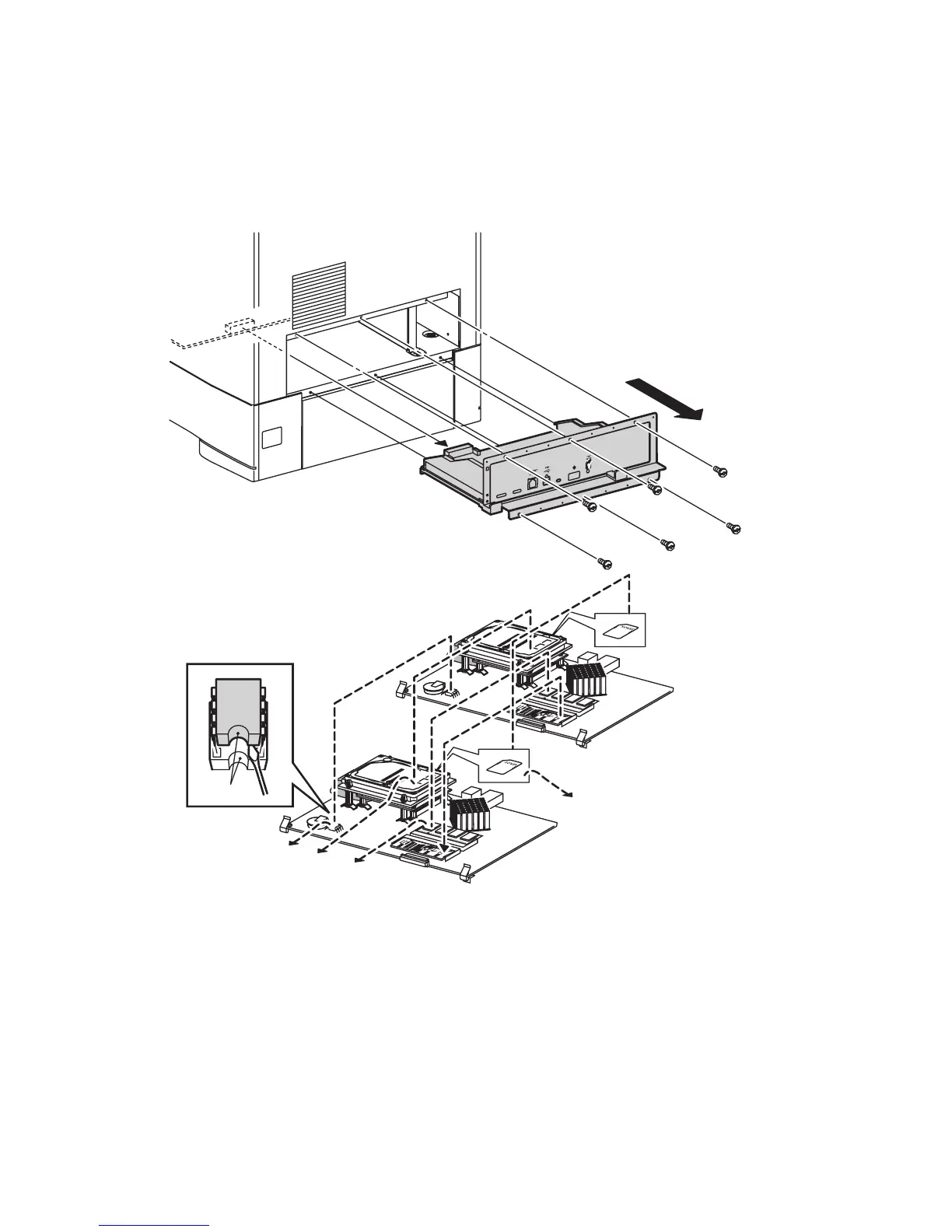

Image Processor Board (PL9.1.3)
1. Remove the Tray Rear Cover (page 8-22).
2. Remove the 6 screws that secure the Rear Panel to the printer and pull to remove.
3. Transfer the installed Memory, NVRAM, Configuration Card, and Hard Drive
from the old board to the new board.
Replacement Note
Print a Configuration Page after the new board is installed to ensure the
customers configuration is restored.
Notch
s6300-365
