Xerox Phaser 6300 Service Manual

10-32 Phaser 6300/6350 Color Laser Printer Service Manual

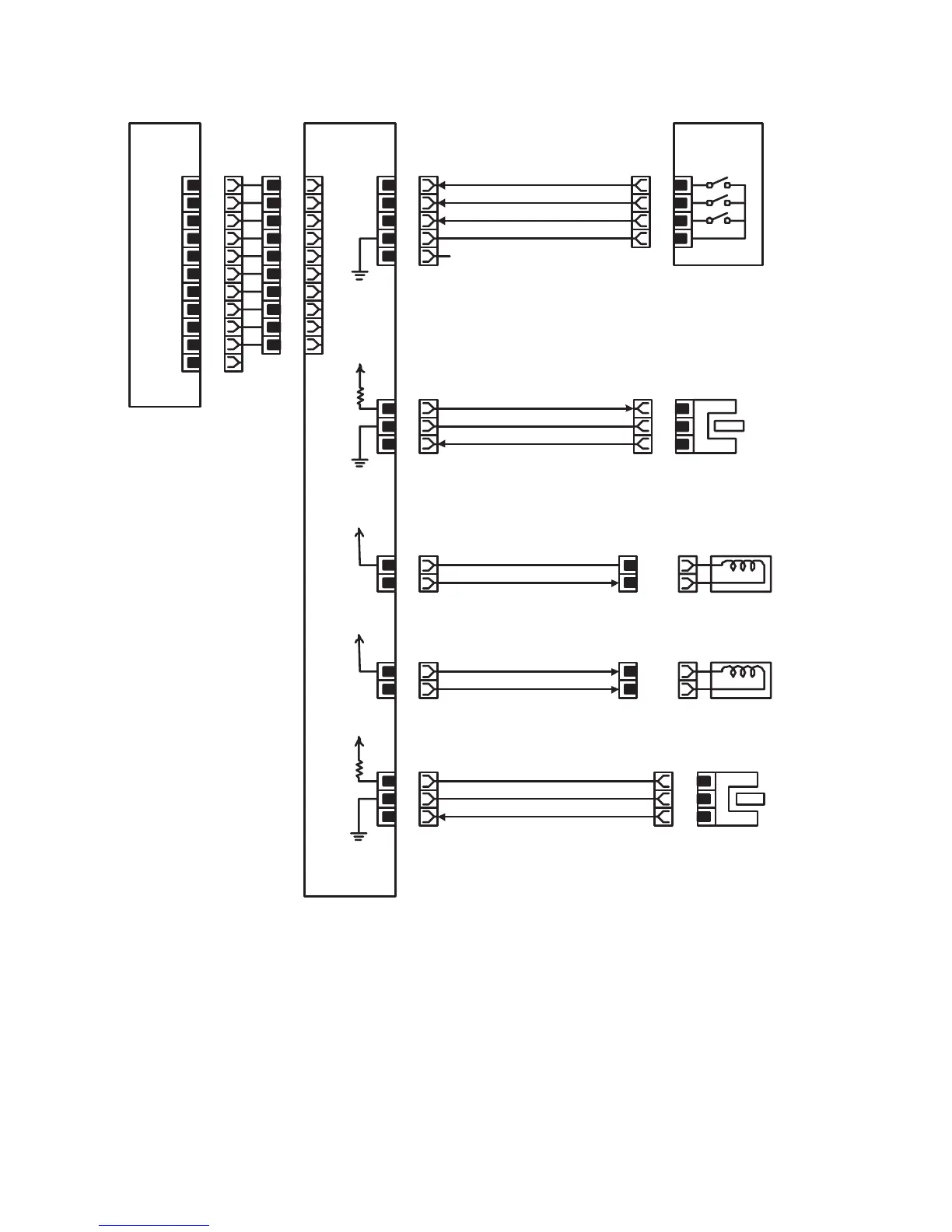

Lower Tray
P/J823
3
P/J80
1
2
4
3
Paper Size
Switch
PL12.2.6
Option Tray3 Size0 On(L) +3.3VDC
Option Tray3 Size1 On(L) +3.3VDC
5
SG
NC
Option Tray3 Size2 On(L) +3.3VDC
P/J821
4
3
1
2
Low Paper
Sensor
PL12.5.7
2
1
P/J81
1
2
3
Pull Up +3.3VDC
SG
Option Tray3 Low Paper On(H) +3.3VDC
P/J85
1
2
I/L +24VDC
Option Tray3_Turn On(L) +24VDC
P/J85
3
4
Feed Solenoid
PL12.5.11
P824
2
J824
1
1 2
I/L +24VDC
Option Tray3 Feed On(L) +24VDC
P825
2
1
J825
1
2
Turn Roller
Clutch
PL12.5.4
P/J822
3
No Paper
Sensor
PL12.5.7
2
1
P/J85
5
6
7
Pull Up +3.3VDC
SG
Option Tray3 No Paper On(H) +3.3VDC
P/J84
1
2
3
4
5
6
7
8
9
10
11
P/J83
10
9
8
7
6
5
4
3
2
1
NC
Upper
OPTFDR 2
Board
PL12.3.3
Lower
OPTFDR 2
Board
PL12.3.3
+3.3VDC
Interlock
+24VDC
Interlock
+24VDC
+3.3VDC
s6300-339
