Xerox Phaser 6300 - Retard Holder Assembly (PL4.1.16)

Service Parts Disassembly 8-37
Retard Holder Assembly (PL4.1.16)
1. Open the Door A.
2. Remove the Transfer Roller.

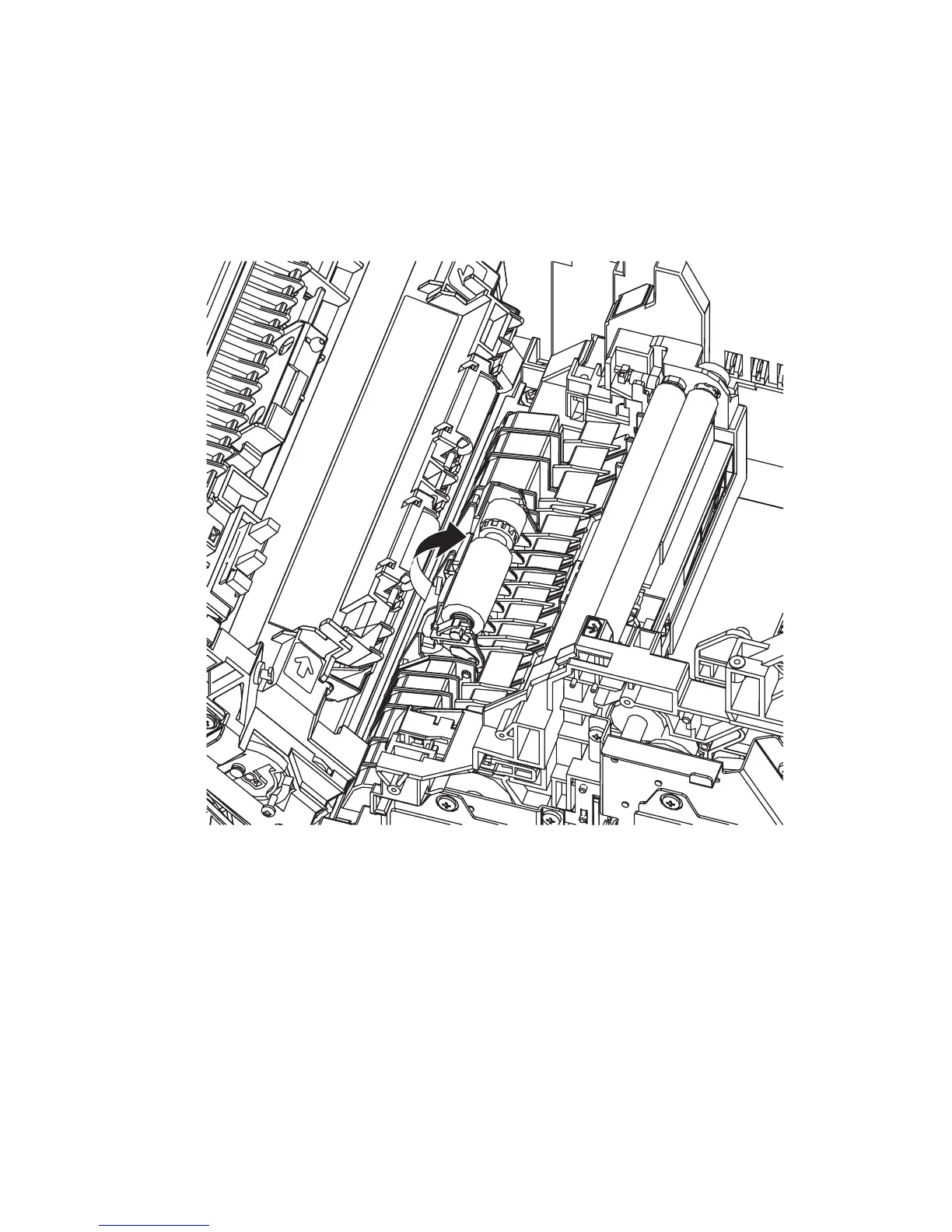

3. Turn the Retard Holder Assembly upward.
4. Move the Retard Holder Assembly to the right to release the shaft and remove the
Retard Holder Assembly.
s6300-158
