Xerox Phaser 6300 - OPTFDR 1 Harness (PL11.1.6)

Service Parts Disassembly 8-137

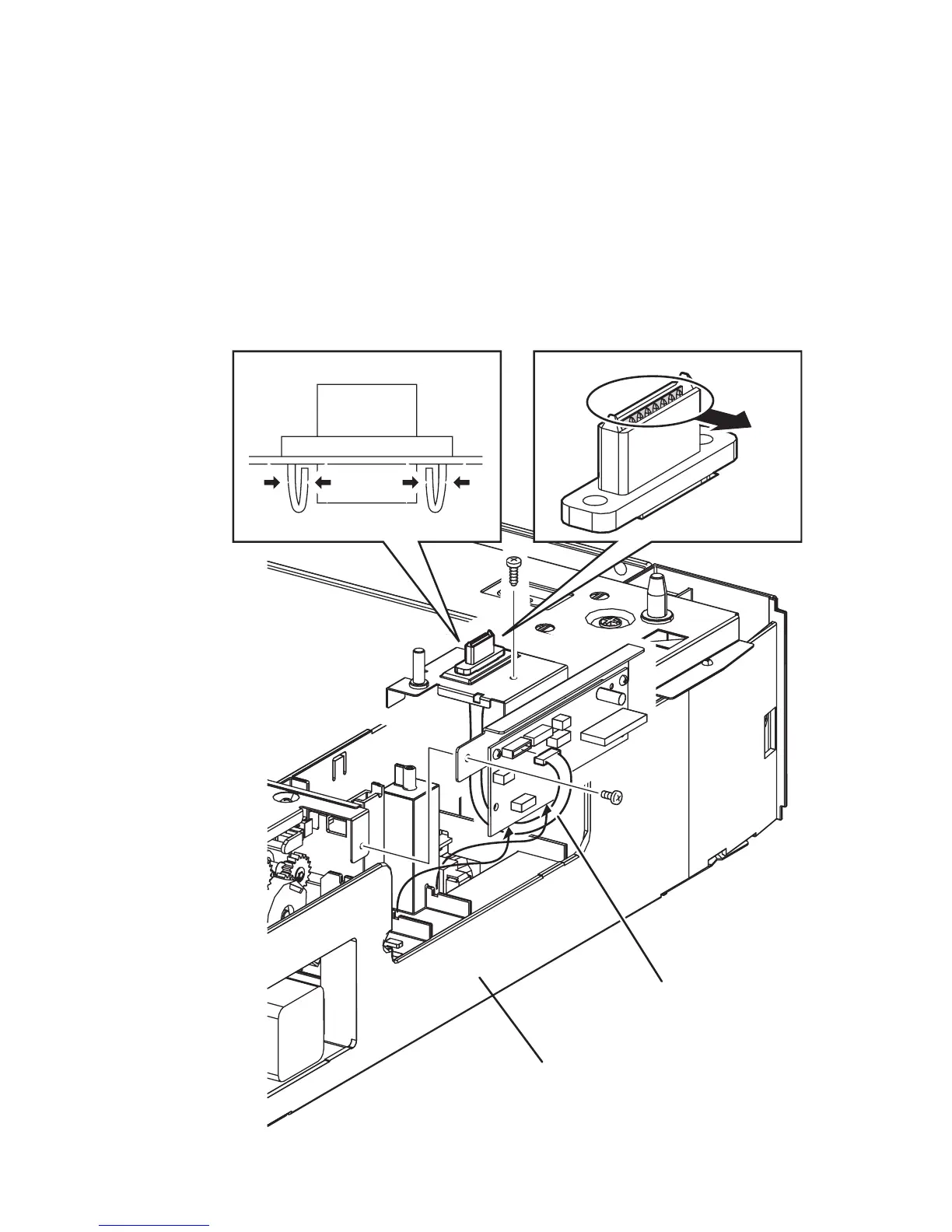

OPTFDR 1 Harness (PL11.1.6)
1. Remove the 550-Sheet Feeder (page 8-134).
2. Remove the Right Cover (page 8-135).
3. Remove the screw (metal, 6 mm) in the Connector Plate and the screw in the
OPTFDR 1 Board.
4. Remove the assembly from the Feeder.
5. Disconnect the harness (P/J83) from the OPTFDR 1 Board.
6. Release two hooks that hold the OPTFDR 1 Harness from the rear side of
Connector Plate, and remove the harness.
s6300-226
Tray 3 Feeder
OPTFDR 1 Harness
