Xerox Phaser 6300 - Tray 1 (MPT) Feed Roller (PL5.3.20)

Service Parts Disassembly 8-49
Tray 1 (MPT) Feed Roller (PL5.3.20)
1. Remove the Left Front Cover (page 8-18).
2. Remove the Left Side Cover (page 8-13).

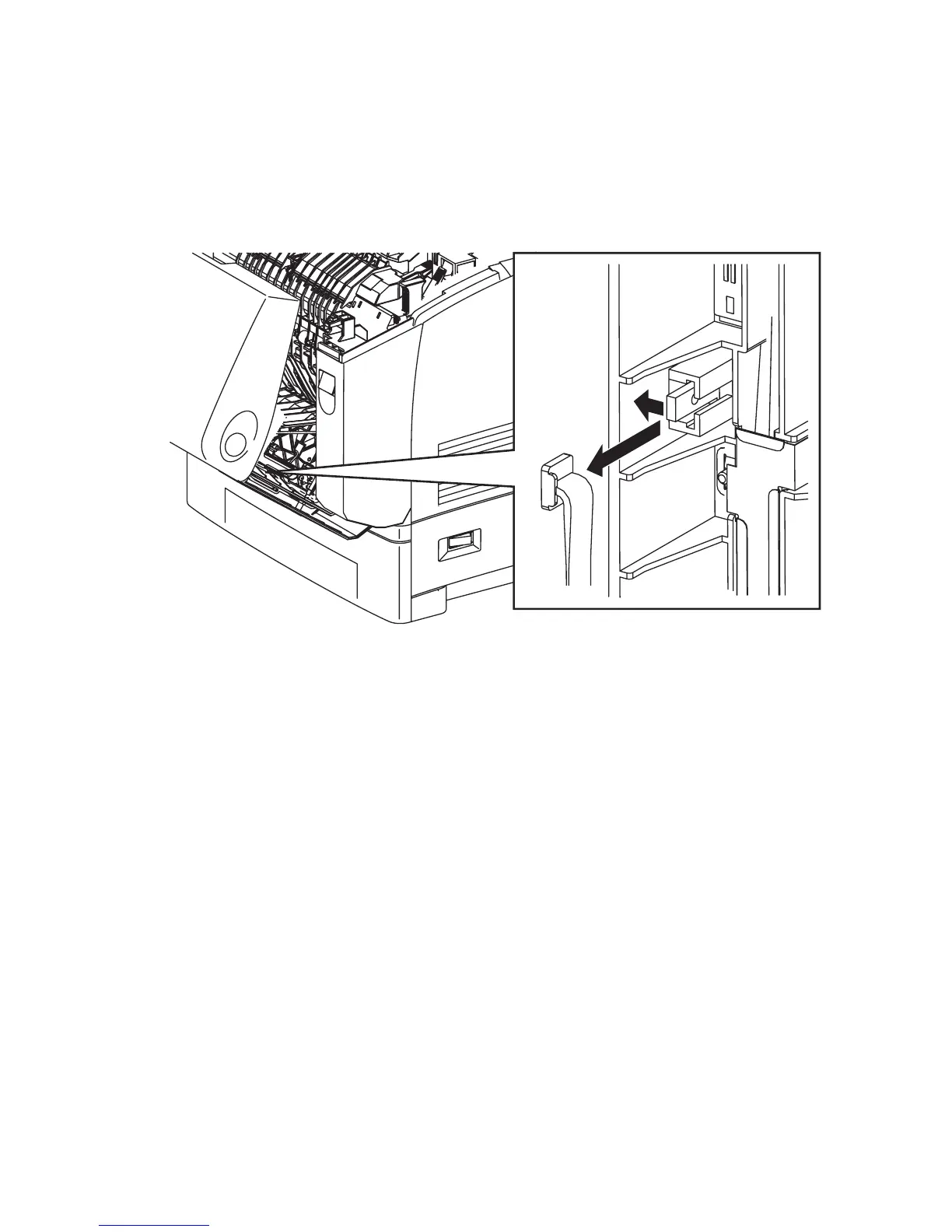

3. Open Door B.
4. Release the hook to remove the Strap from Door B.
5. Close Door B.
Caution
Hold the Chute Assembly Out after releasing the Link and spring to prevent the
chute from falling open. Gently lower the chute to the supporting surface.
s6300-175
