8-110 Phaser 6300/6350 Color Laser Printer Service Manual
Optional 1100-Sheet Feeder Disassembly
Docking (PL12.1.1)
Caution
Lifting the printer requires two people. Use care when removing the printer from
the 1100-Sheet Feeder.

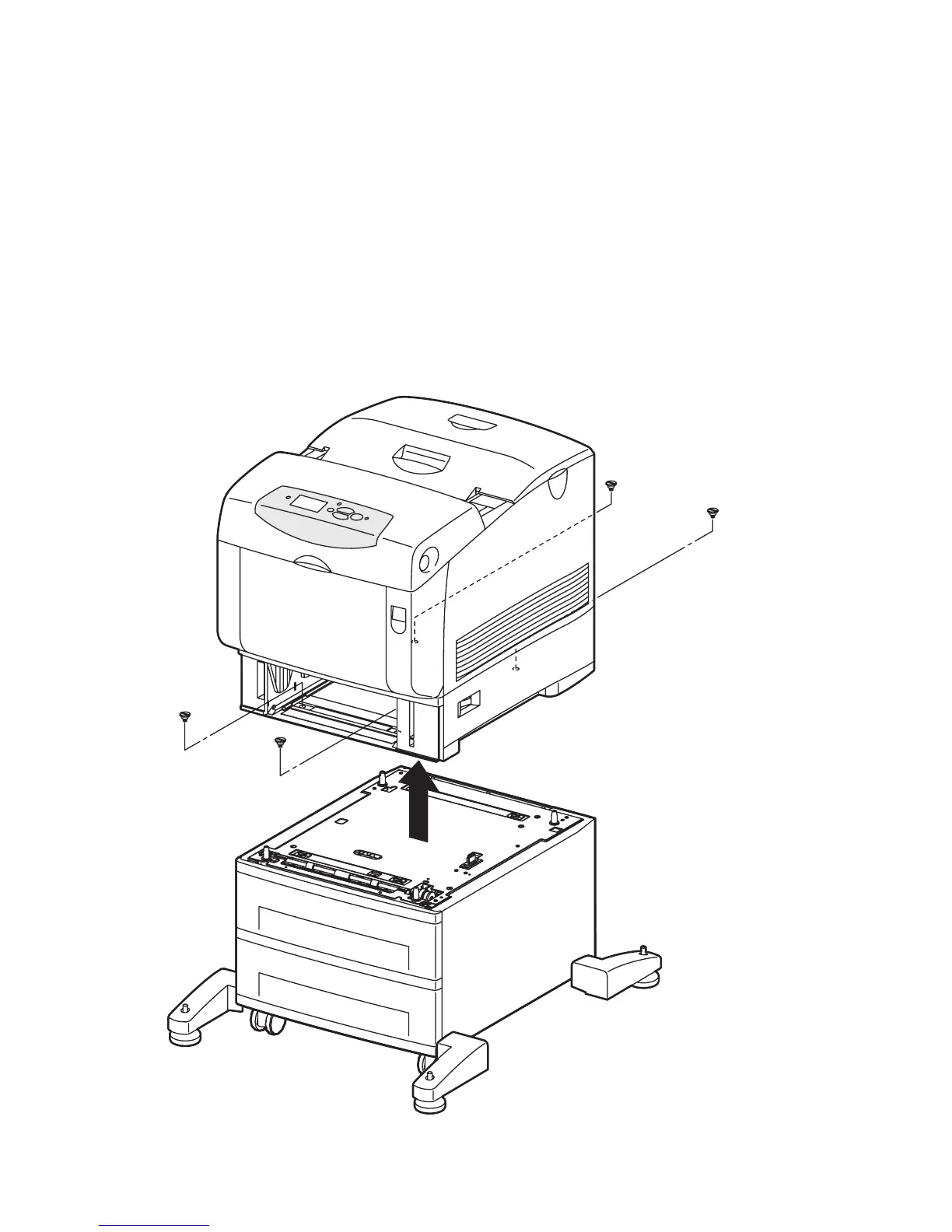

1. Pull Tray 2 from the printer.
2. Remove four screws that secure the 1100-Sheet Feeder to the frame of the printer.
3. Lift the printer from the 1100-Sheet Feeder.
s6300-250
To Next Page
