Service Parts Disassembly 8-129

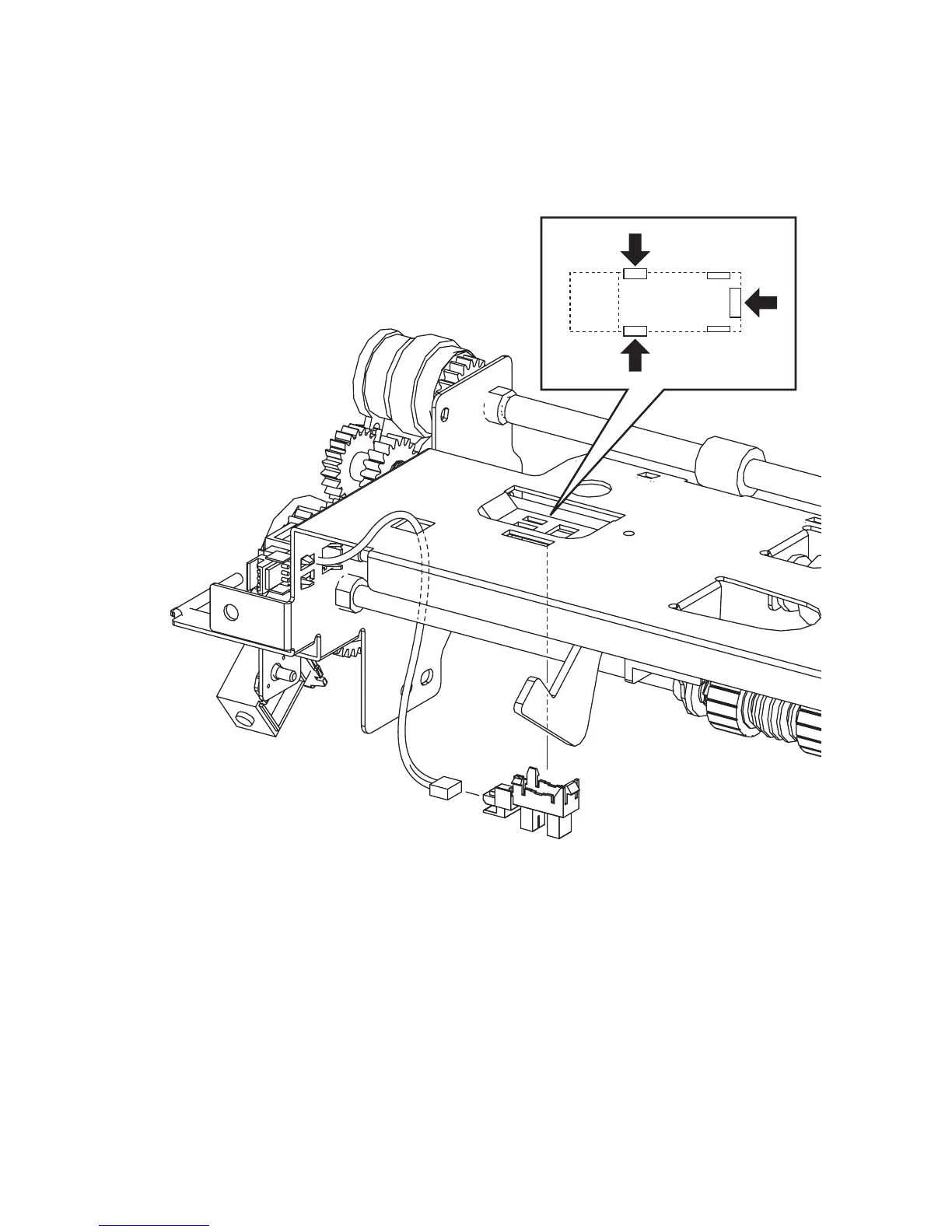

Low Paper Sensor (PL12.5.7)
1. Remove the Paper Pick Assembly (page 8-122).
2. Disconnect the Low Paper Sensor connector (P/J823).
3. Release the 3 hooks on the Low Paper Sensor and remove the sensor.
s6300-267
