Tray 1 (MPT) Cover (PL1.1.27)
1. Open Tray 1 (MPT).
2. Spread the right and left slots of the Tray 1 (MPT) Cover outward, pull out the
left and right bosses of Tray 1 (MPT).
3. Move the cover to the rigt to release the two bosses at the bottom of the
Tray 1 (MPT) Cover.

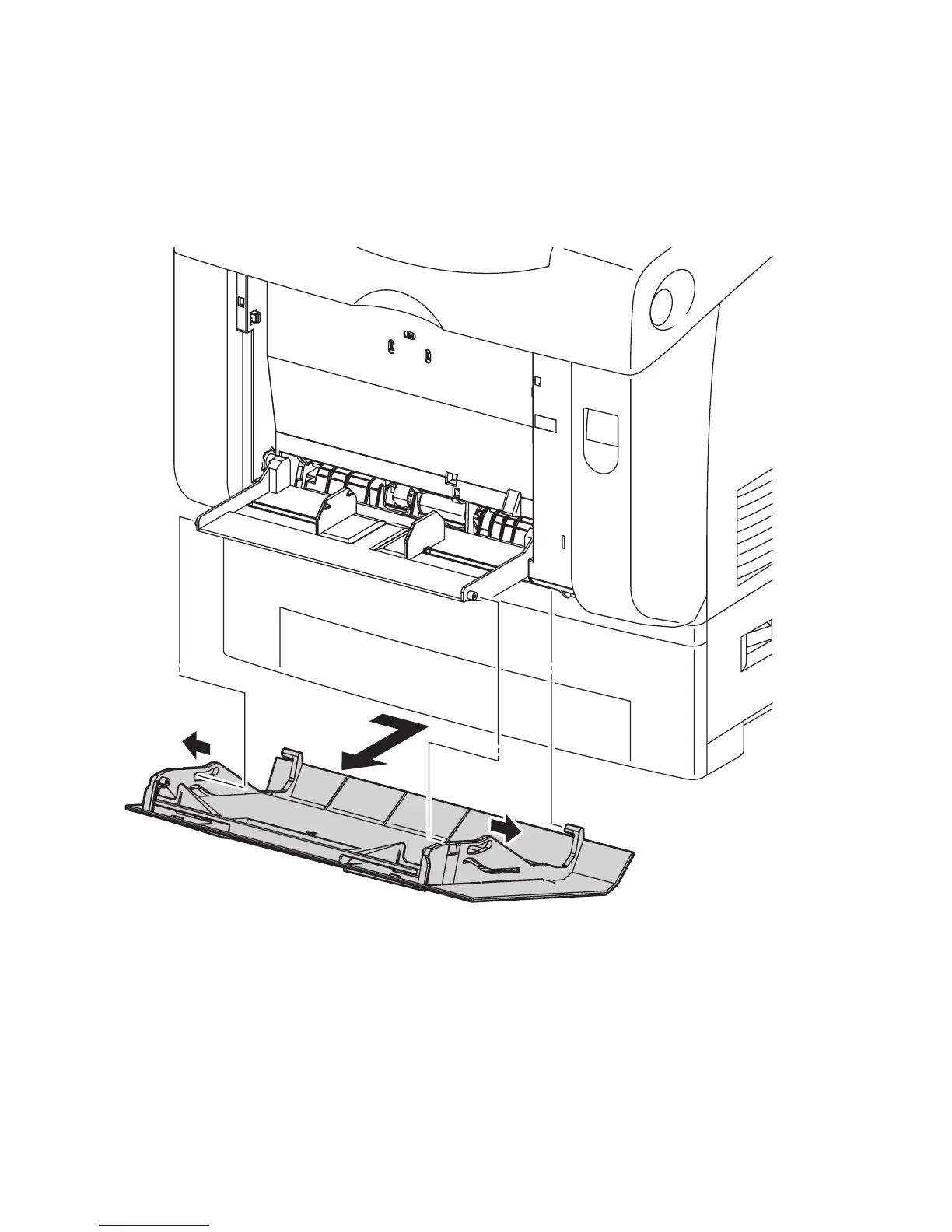

s6300-134
