Xerox Phaser 6300 Service Manual

Service Parts Disassembly 8-115
Feeder Chute (PL12.2.7)
1. Remove the tray.
2. Push inward the concaved sections at the left and the right sides and swing the
Feeder Chute downward.
3. Release the retainer at one end of the Feeder Chute to release the boss from the
Feeder Assembly.
4. Pull the Feeder Chute out, and then down to remove it from the frame.

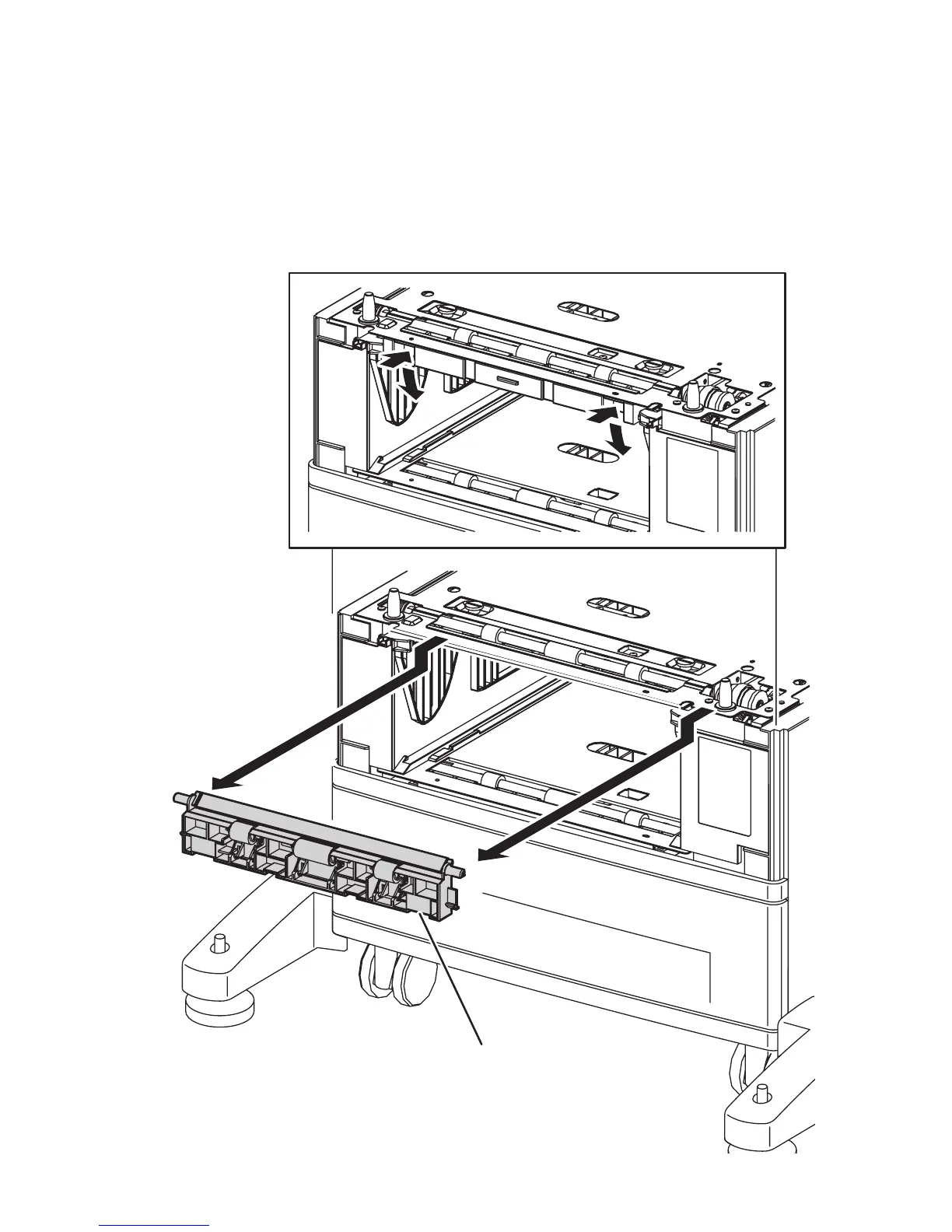

Feeder Chute
