Theory of Operation 2-5
Print Process Components

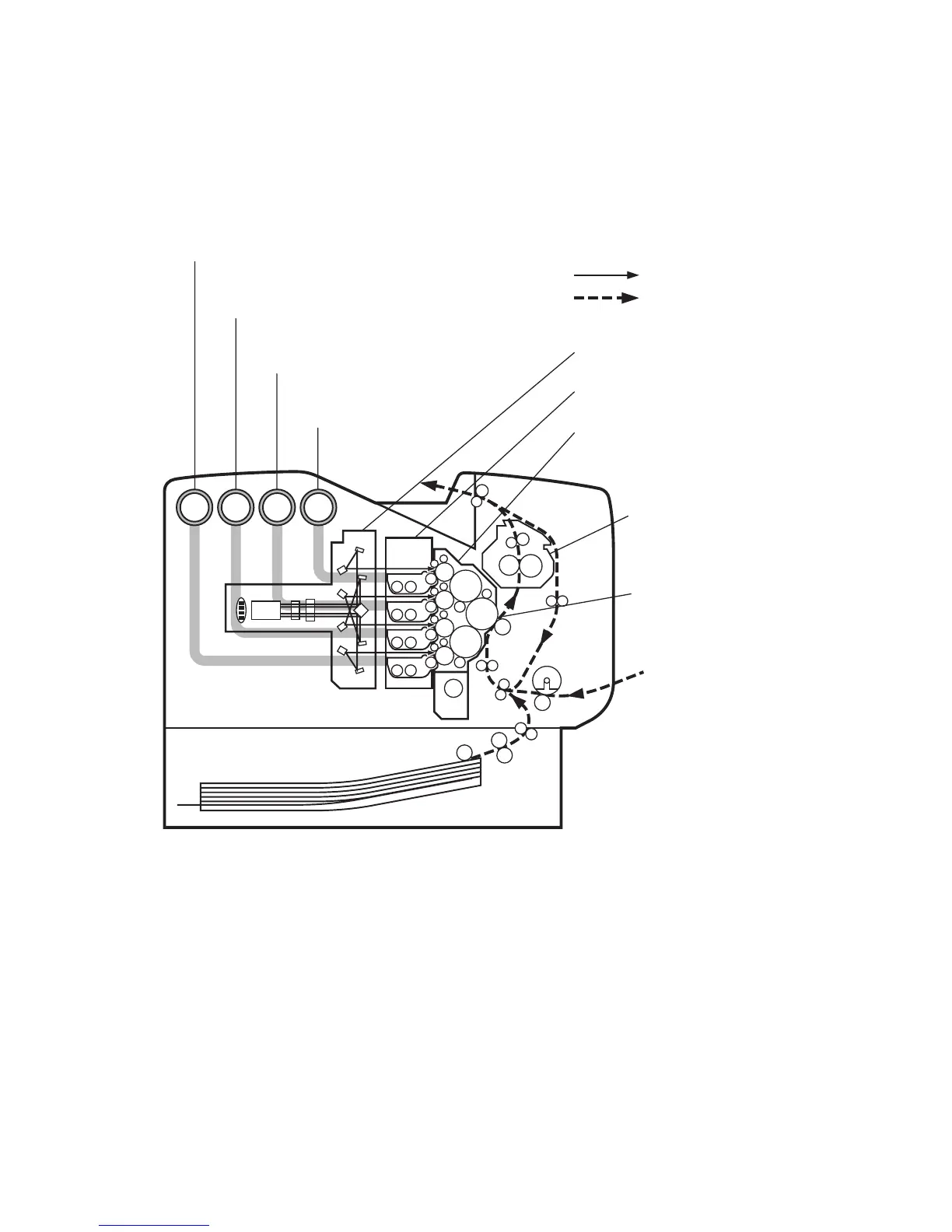

The relative position of the components involved in the printing process, the tray and
duplex paper paths, and numbered references to the
"Print Process Block Diagram"
on page 2-2, appear in the following figure.
Y Toner Cartridge
[(3) Development]
M Toner Cartridge
[(3) Development]
C Toner Cartridge
[(3) Development]
K Toner Cartridge
[(3) Development]
Laser Unit [(2) Exposure]
Developer Frame Assembly
Imaging Unit
Fuser
[(10) Fixing]
Transfer Roller
[(7) Tertiary transfer]
[(11) Cleaning]
: Laser beam
: Paper transfer
s6300-021
