8-138 Phaser 6300/6350 Color Laser Printer Service Manual

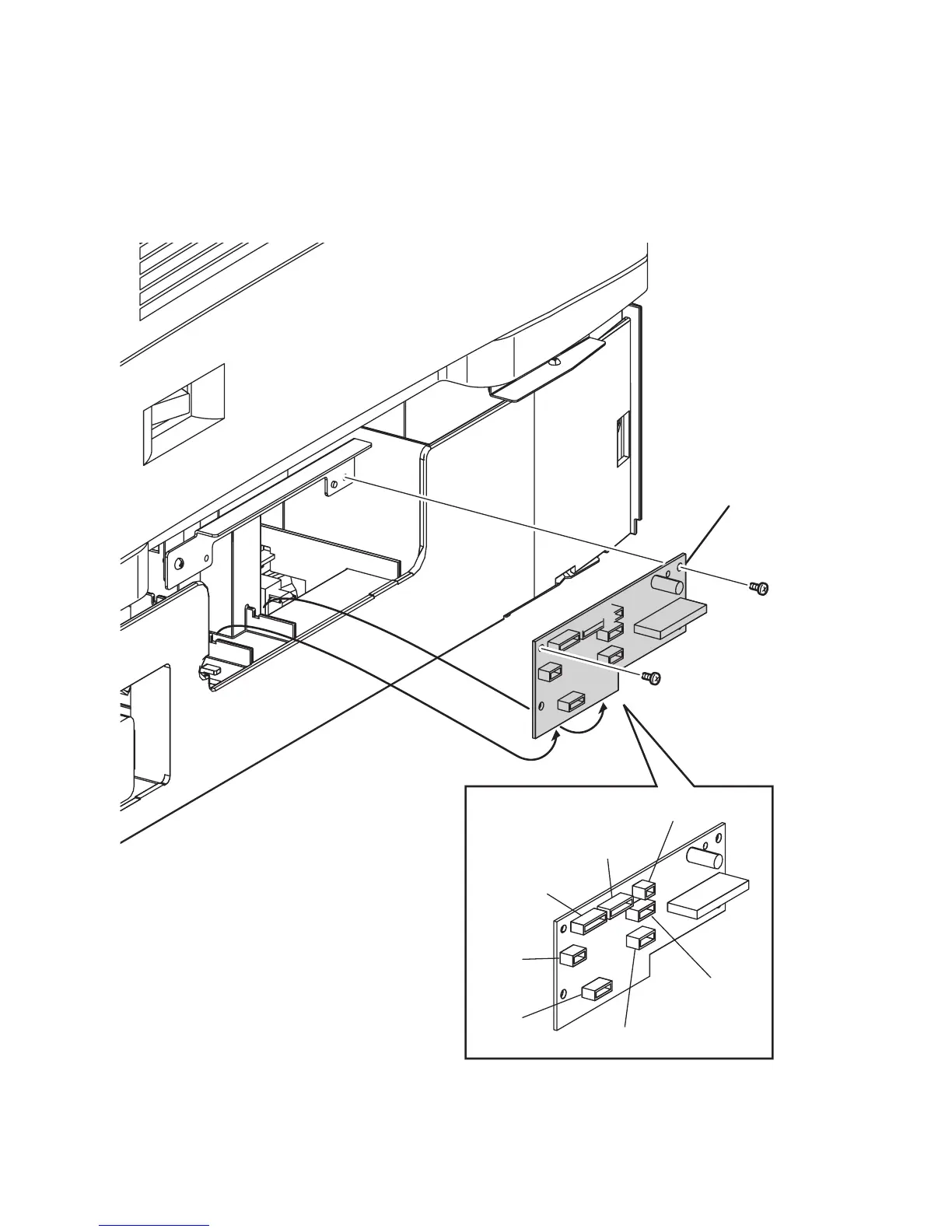

Circuit Board LTA (PL11.1.10)
1. Remove the Right Cover (page 8-135).
2. Remove all connectors on the OPTFDR 1 Board.
3. Remove 2 screws (metal, 6 mm) the secure the OPTFDR 1 Board to the bracket.
4. Remove OPTFDR 1 Board from the notches in the Feeder frame.
s6300-227
P83
P80
P86
P84
P81
P85
P82
OPTFDR 1 Board
