Xerox Phaser 6300 - Paper Size Switch Assembly (PL3.2.24)

Service Parts Disassembly 8-25

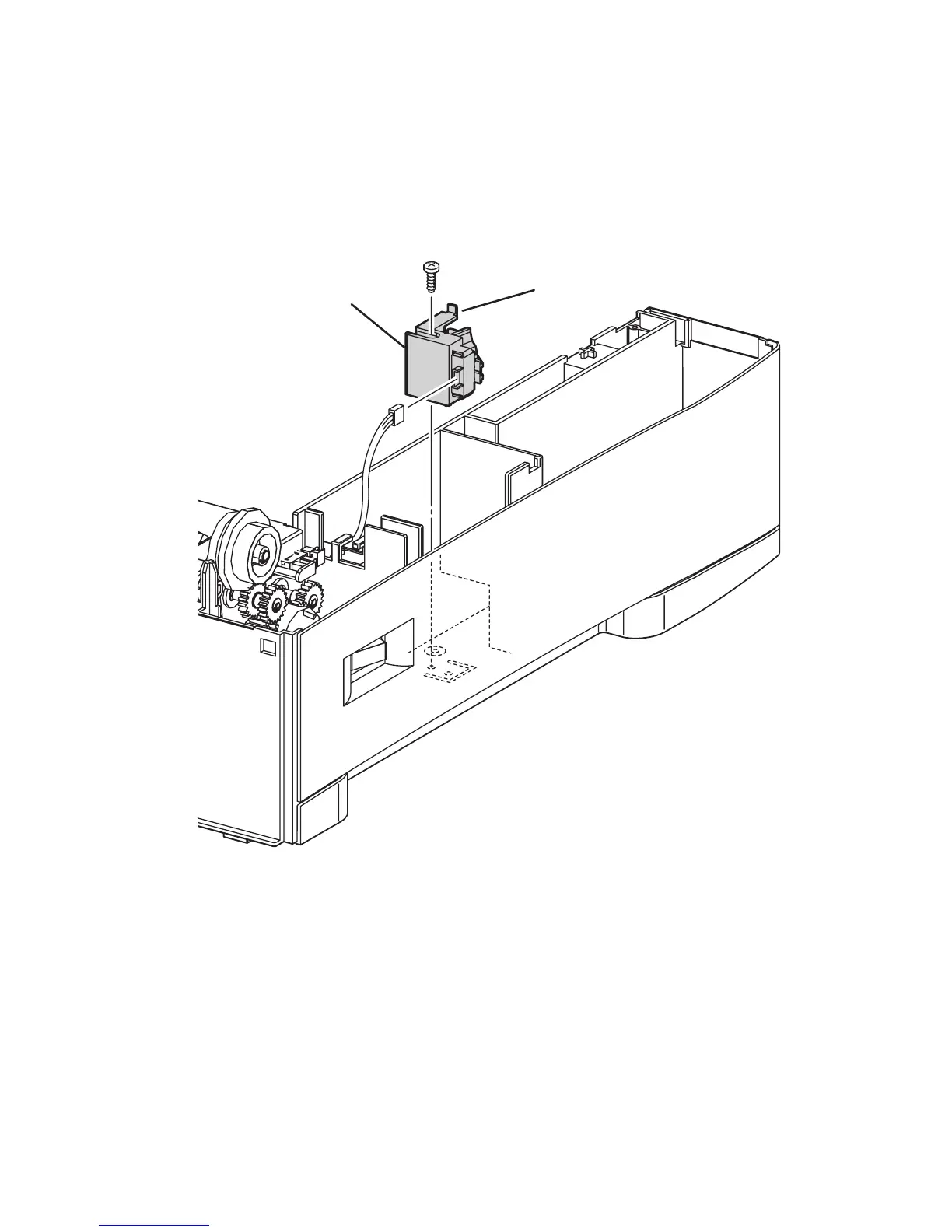

Paper Size Switch Assembly (PL3.2.24)
1. Remove the Printer Chassis (page 8-23).
2. Remove the screw (self-tapping, plastic 10 mm) that secures the Paper Size
Switch to the Right Feeder.
3. Release the Latch and lift the Paper Size Switch from the feeder.
4. Unplug connector (P/J471) from the Paper Size Switch.
Replacement Note
Hook the Paper Size Switch latch to the feeder housing before locating and
securing the srew.
s6300-142
P/J471
Paper Size Switch Latch
