Xerox Phaser 6300 - Right Feeder Assemblies (PL12.2.4)

Service Parts Disassembly 8-117
Right Feeder Assemblies (PL12.2.4)
Caution
Move the sensor flags upwards before attempting to remove the feeders.
1. Remove the Front Covers (page 8-111).
2. Remove the Right Cover (page 8-113).
3. Remove the Feeder Chute (page 8-115).
4. Remove the Tray Rear Cover (page 8-22).
Note
Perform Step 5 only when removing the upper Right Feeder Assembly.
5. Remove the Drive Assembly (page 8-121).
6. Remove the Paper Size Switch connector (P/J821).
7. Remove 6 screws (self-tapping, plastic 8 mm) that secure the Right Feeder.
8. Tilt the Right Feeder Assembly and remove it from the front.
Replacement Note
Replace the Upper Right Feeder before replacing the Drive Motor.

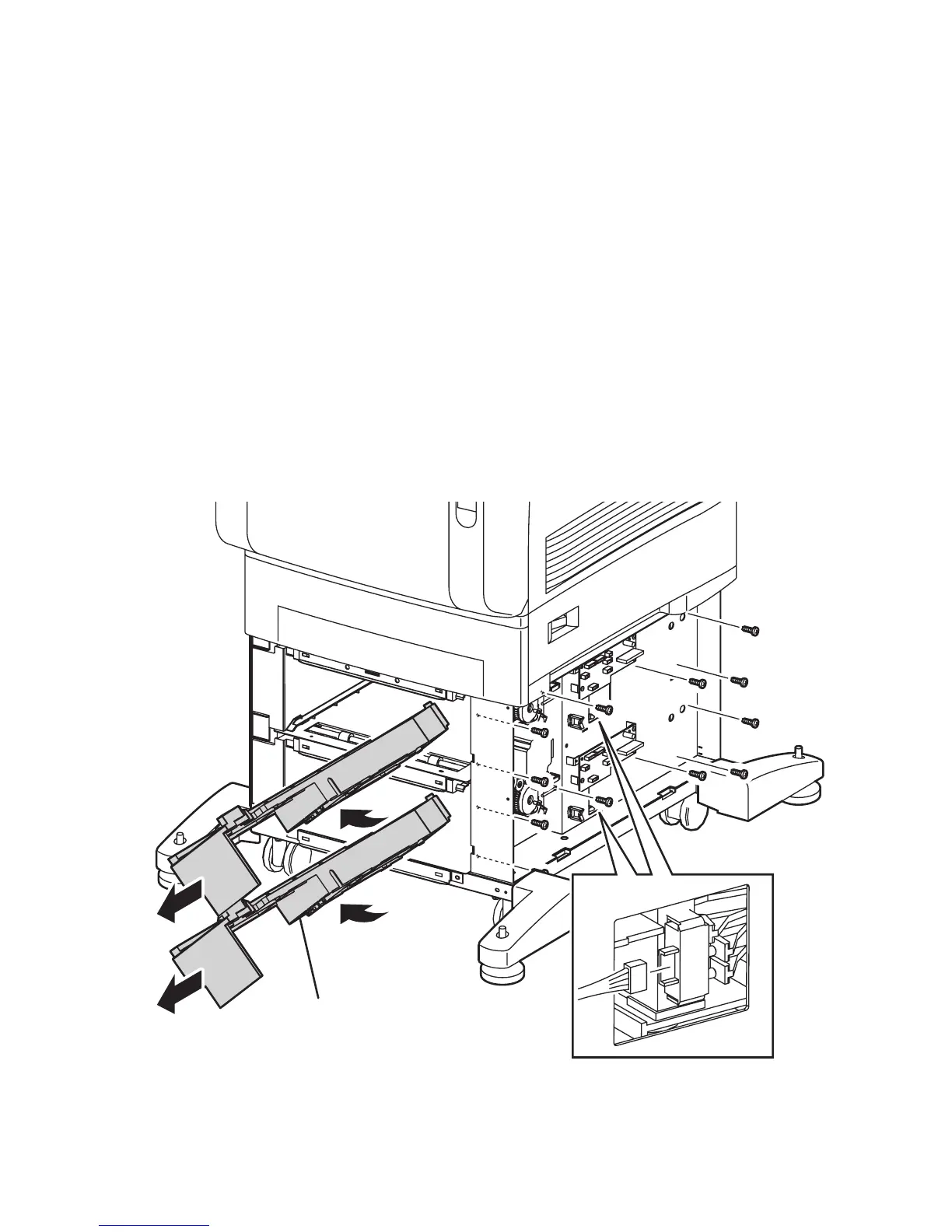

s6300-255
Right Feeder Assembly
