Xerox Phaser 6300 Service Manual

Service Parts Disassembly 8-31
Low Paper Sensor Actuator (PL3.3.14)
1. Remove the Upper Chute (page 8-30).

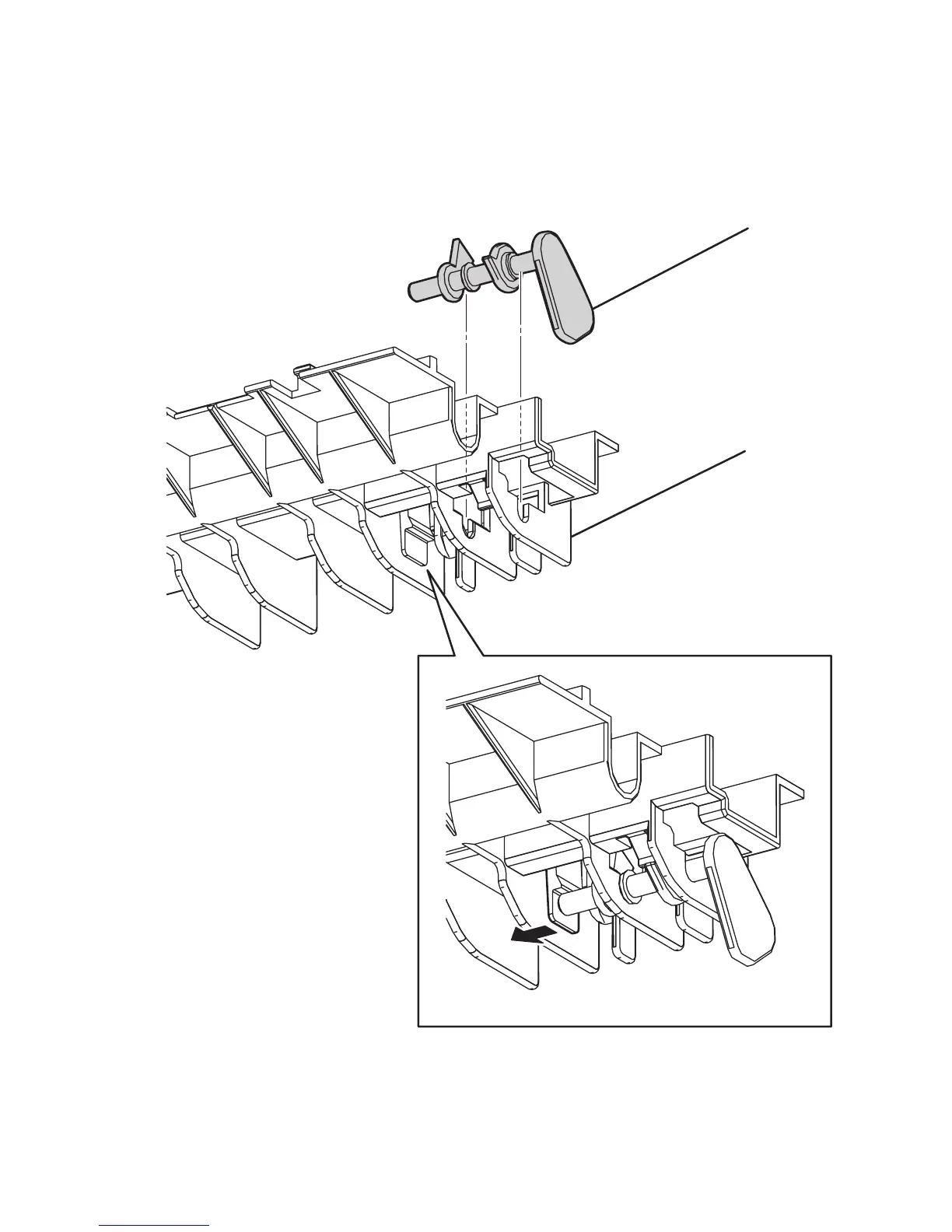

2. Release the hook of the Upper Chute that secures the Low Paper Sensor Actuator,
and move the actuator in the direction of the arrow (2) to remove.
Replacement Note
While holding the Upper Chute, insert the flag downward from the top.
s6300-150
Upper Chute
Actuator
