Xerox Phaser 6300 - Paper Pick Assembly (PL11.3.1)

Service Parts Disassembly 8-141
Paper Pick Assembly (PL11.3.1)
1. Remove the 550-Sheet Feeder (page 8-134).
2. Remove the Right Cover (page 8-135).
3. Remove the Left Cover (page 8-136).
4. Remove the Drive Assembly (page 8-146).

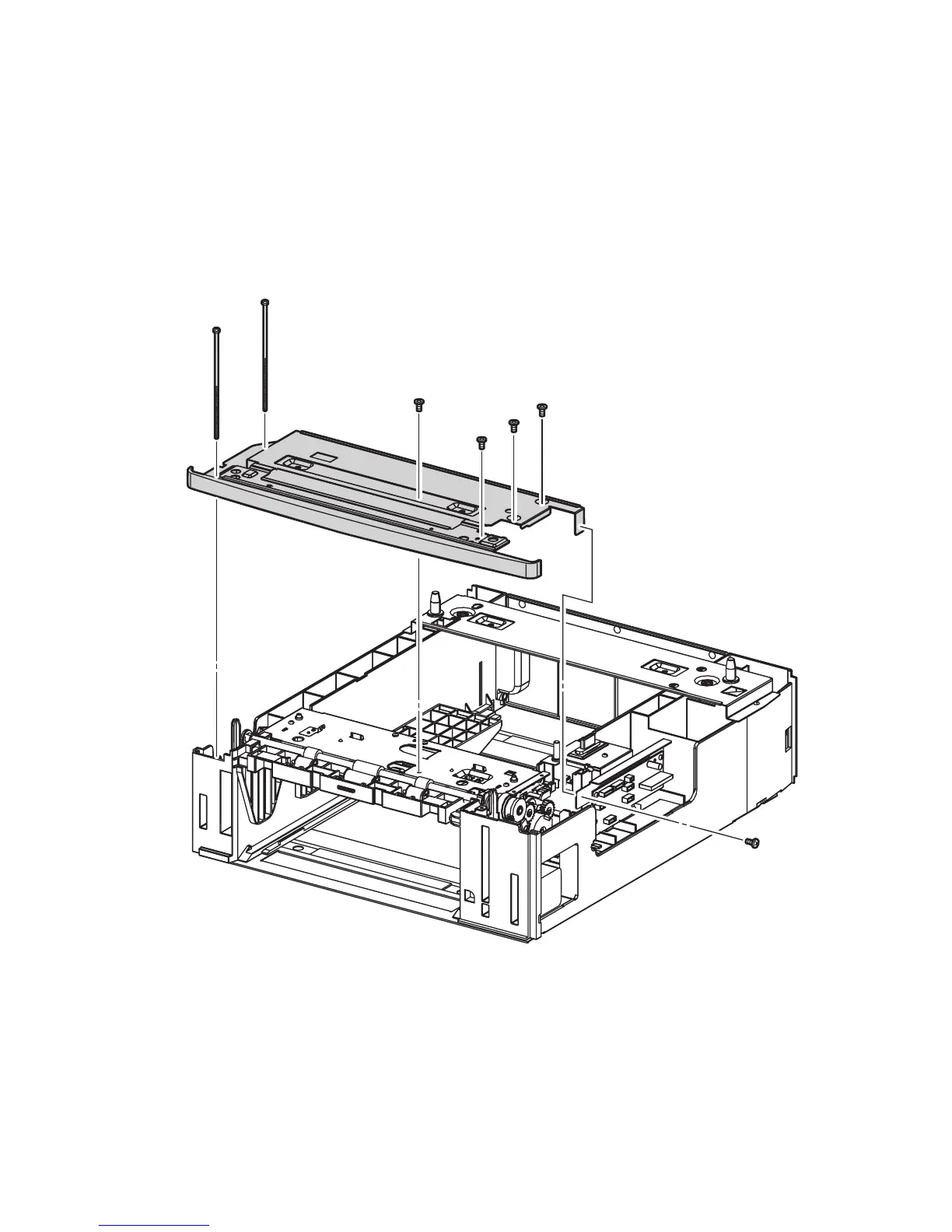

5. Remove two long screws and five short screws (metal, 6 mm) that secure the Top
Frame Assembly, and remove it from the Feeder.
s6300-233
