Option Feeder Harness (PL3.2.11)
The option connector located at the end of the Option Feeder Harness may be
disconnected from the replacement harness and used to repair a damaged connector.
The connector’s construction allows for replacement without removal of the printer
chassis. Remove the Right Cover, Disconnect P/J17 at the Engine Control Board to
provide slack in the harness, then move the printer so the connector overhangs the
edge of the supporting surface and squeeze the hooks to release the damaged
connector from the frame.
When replacing the entire harness, follow this procedure:
1. Remove the Printer Chassis (page 8-23).
2. Remove the Option Feeder harness from the harness guide of the Right Feeder.

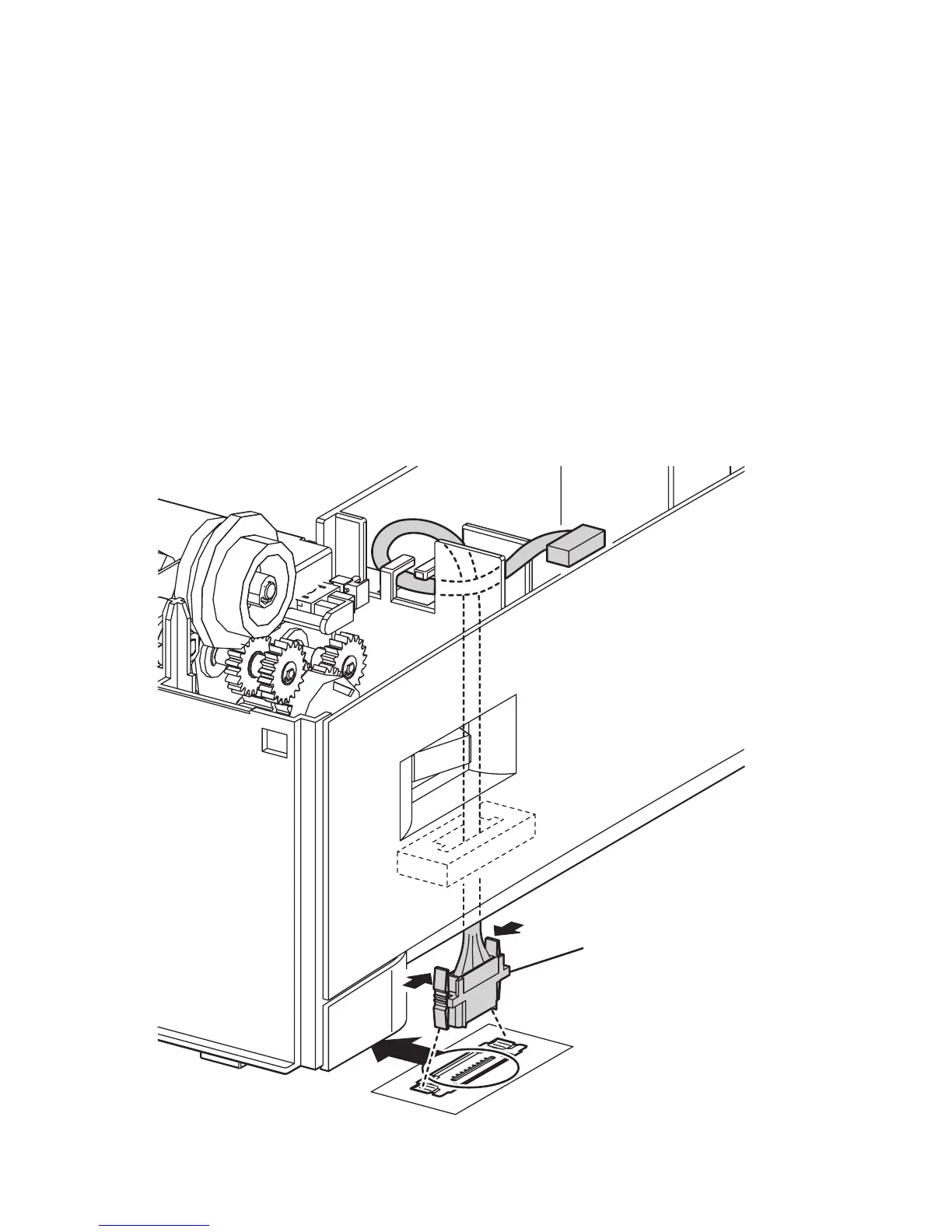

3. Release the 2 hooks that secure the Option Feeder harness connector to the Right
Feeder.
4. Remove the Option Feeder harness from the bottom of the Right Feeder.
s6300-144
Option Connector
