Xerox Phaser 6300 - CRUM Connector (PL7.1.4)

8-80 Phaser 6300/6350 Color Laser Printer Service Manual
CRUM Connector (PL7.1.4)
1. Open Door A.
2. Remove the Imaging Unit.
3. Disconnect (P/J710) from the CRUM connector and remove the harness from the
guide.
4. Open the hook that secures the CRUM connector to its holder on the upper left
side of Developer Frame Assembly and remove the connector.
Replacement Note
Engage the two front connector guides, and then snap the connector into
place.

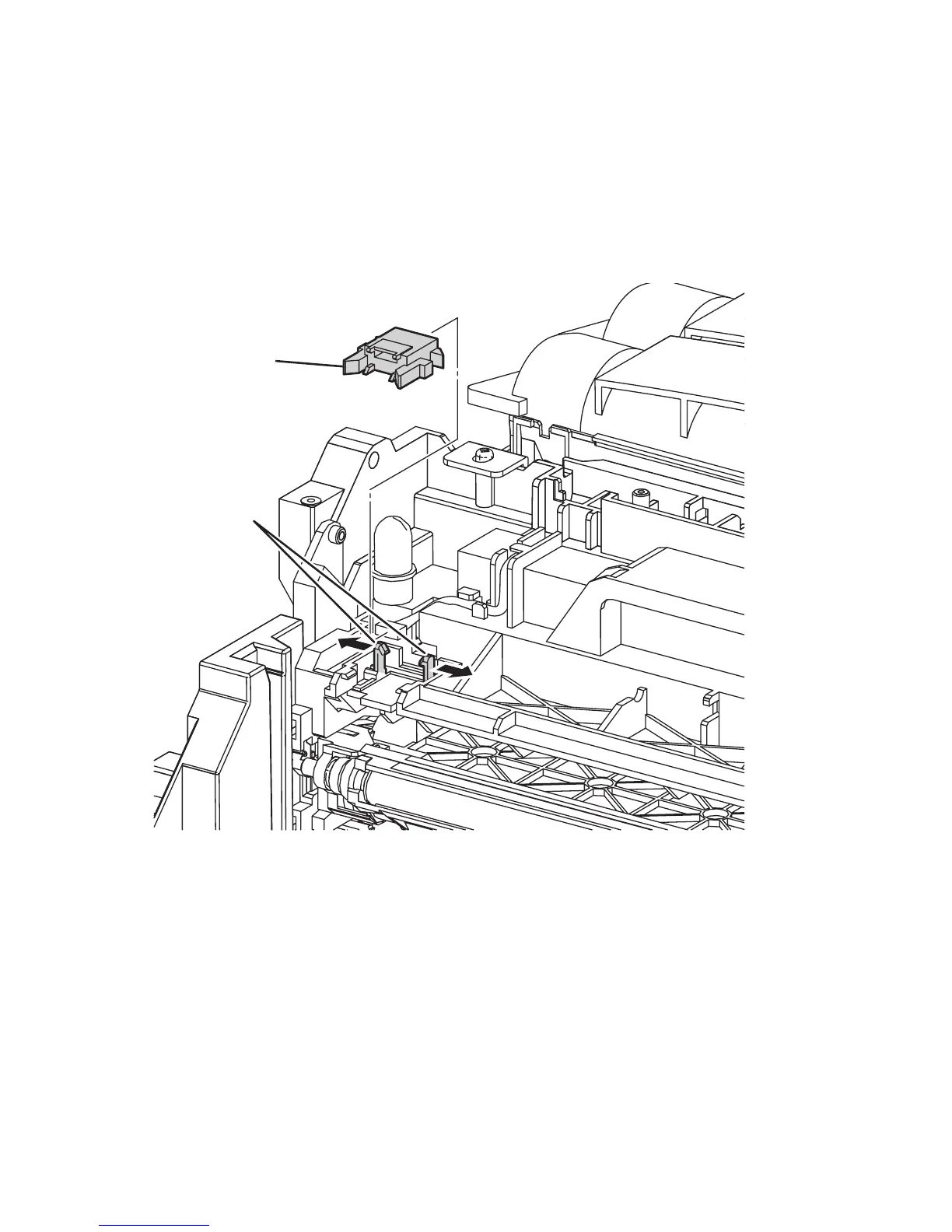

s6300-197
CRUM Connector
Hooks
