Xerox Phaser 6300 Service Manual

Theory of Operation 2-19
Sensors in the Paper Path

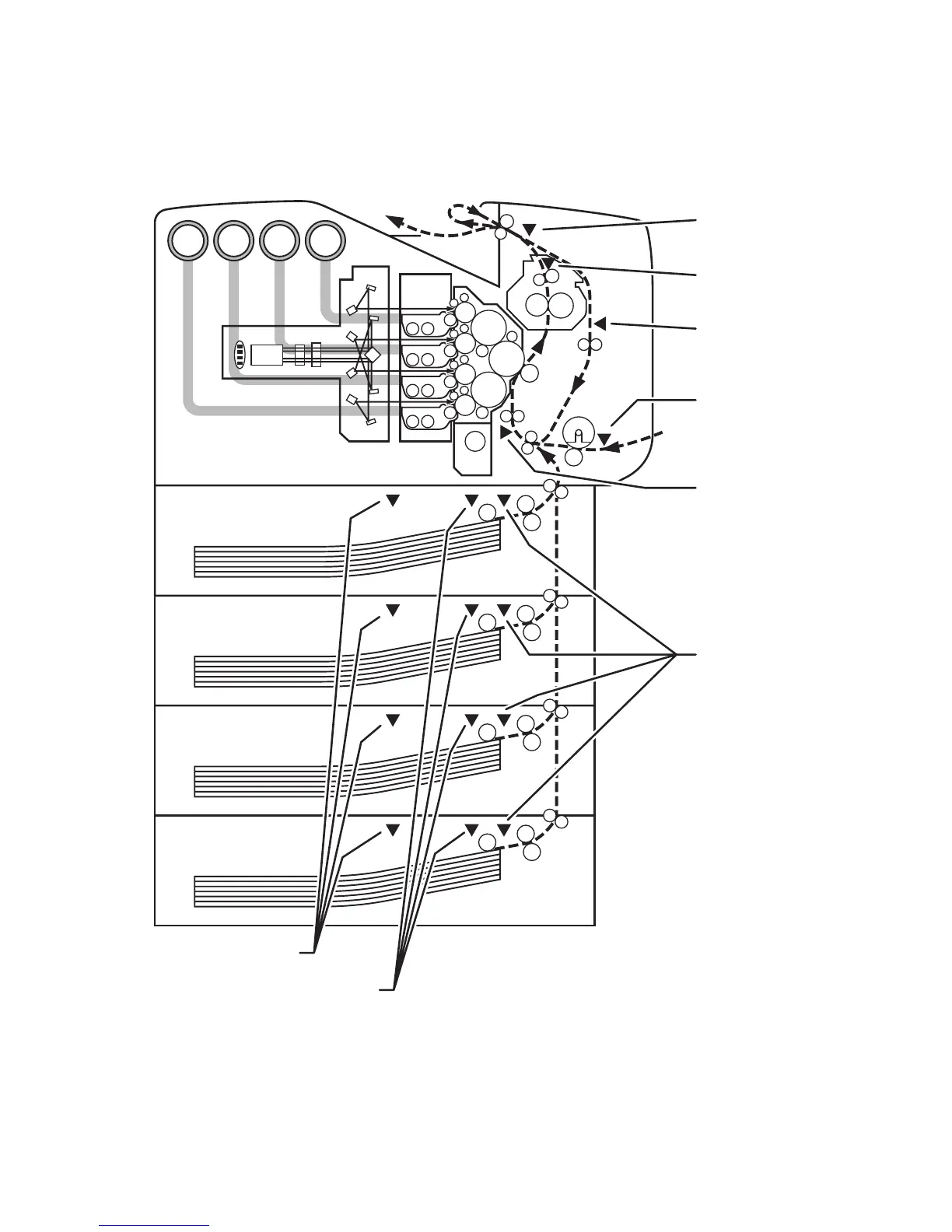

The following illustration identifies the various sensors located along the paper path.
Error reporting is dependent on these designators. Error detection is based on paper
transport timing through the sensing area.
Low Paper Sensor
Full Stack
Sensor
Fuser Exit
Sensor
Duplex Jam
Sensor
Tray 1 (MPT)
No Paper
Sensor
No Paper
Sensor
Registration
Sensor
Paper Size Sensor
s6300-340
