2-20 Phaser 6300/6350 Color Laser Printer Service Manual
Paper Path Sensor Locations

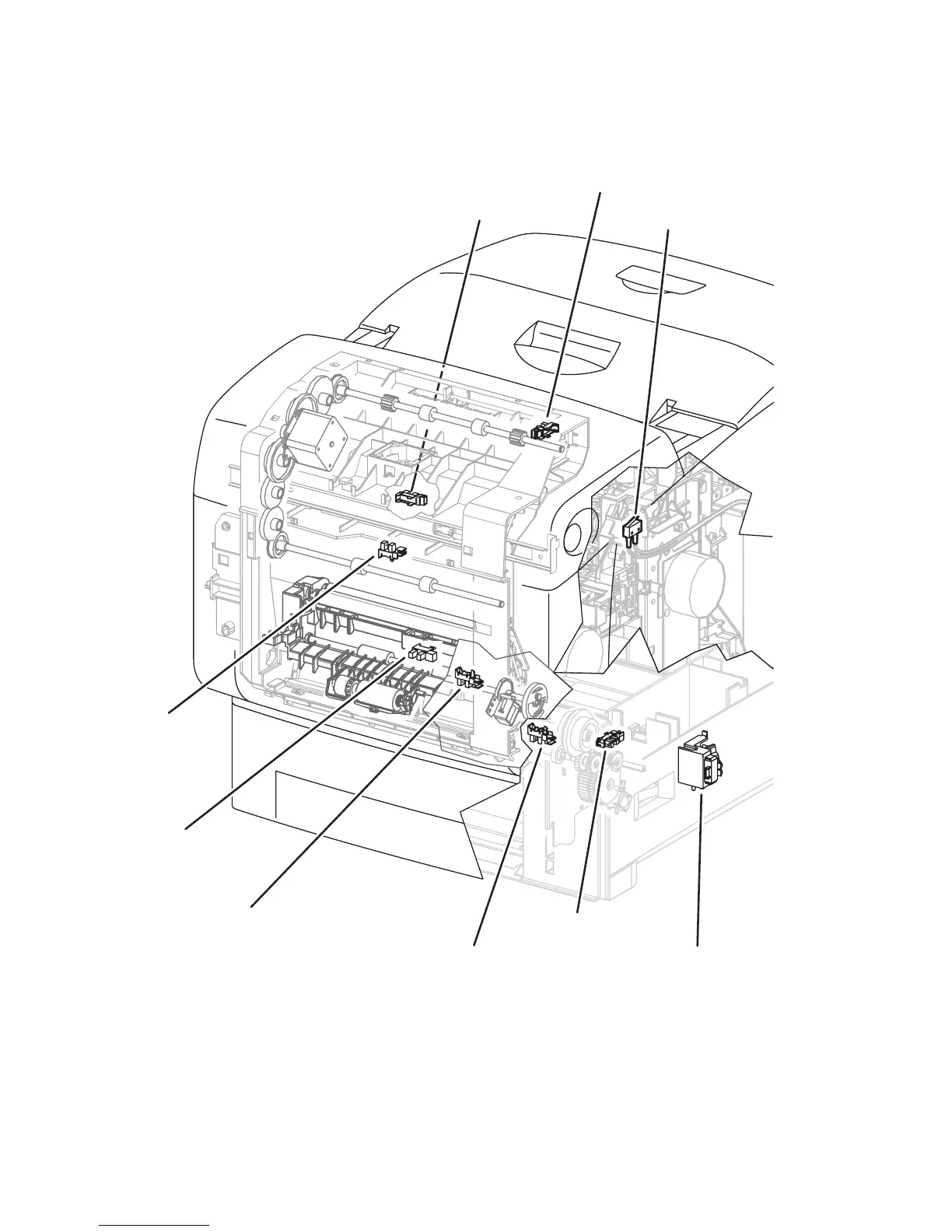

The following diagrams show the relative position of sensors located along the paper
path.
Fuser Exit
Sensor
Tray 1 (MPT) No Paper Sensor
Duplex Jam
Sensor
Full Stack Sensor
Interlock Switch
Registration Sensor
s6300-362
Low Paper Sensor
Paper Size Switch
No Paper Sensor
