Xerox Phaser 6300 - Paper Size Switch (PL12.2.6)

8-118 Phaser 6300/6350 Color Laser Printer Service Manual
Paper Size Switch (PL12.2.6)
1. Remove the Front Covers (page 8-111).
2. Remove the Right Cover (page 8-113).
3. Remove the Chute Assembly (page 8-115).
4. Remove the Tray Rear Cover (page 8-22).
5. Remove the Right Feeder Assembly (page 8-117).

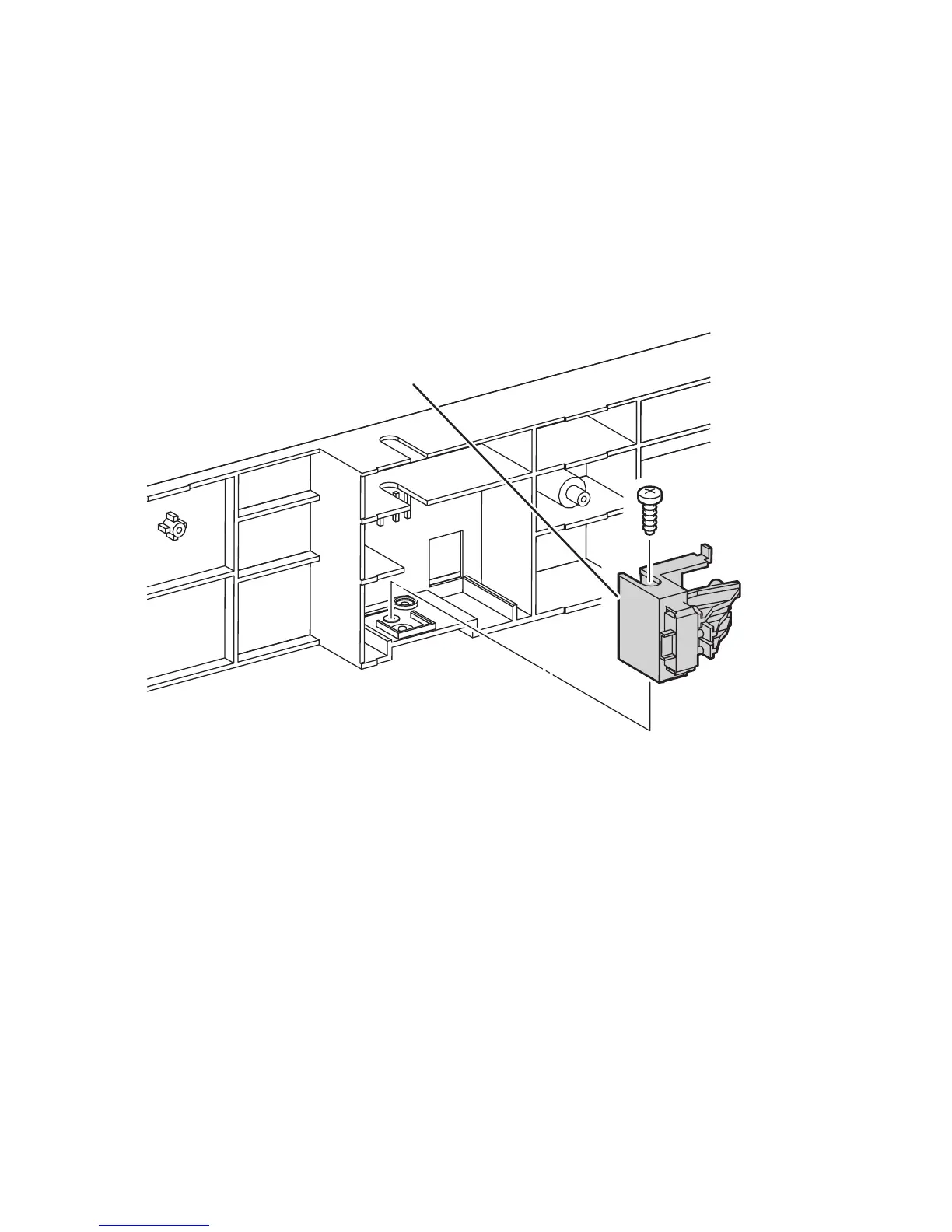

6. Remove a screw (self-tapping, plastic 8 mm) that secures the Paper Size Switch
to the Right Feeder Assembly and remove the switch.
s6300-256
Paper Size Switch Assembly
