8-54 Phaser 6300/6350 Color Laser Printer Service Manual
Duplex Jam Sensor (PL5.4.1) and Actuator (PL5.4.13)

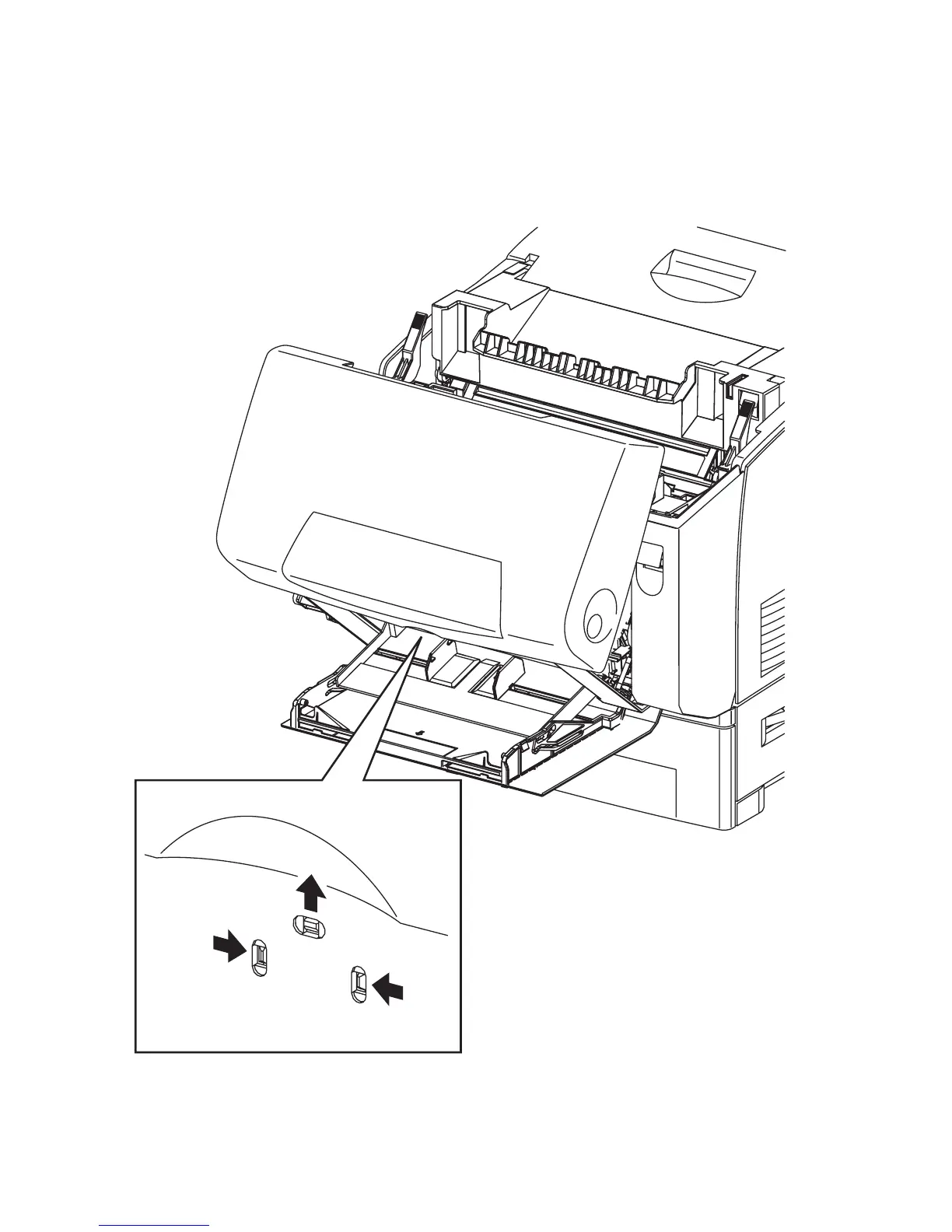

1. Open Tray 1 (MPT).
2. Open Door B.
3. Release the 3 hooks that secure the Duplex Jam Sensor Holder to the Chute
Assembly Out.
s6300-179
