Service Parts Disassembly 8-55

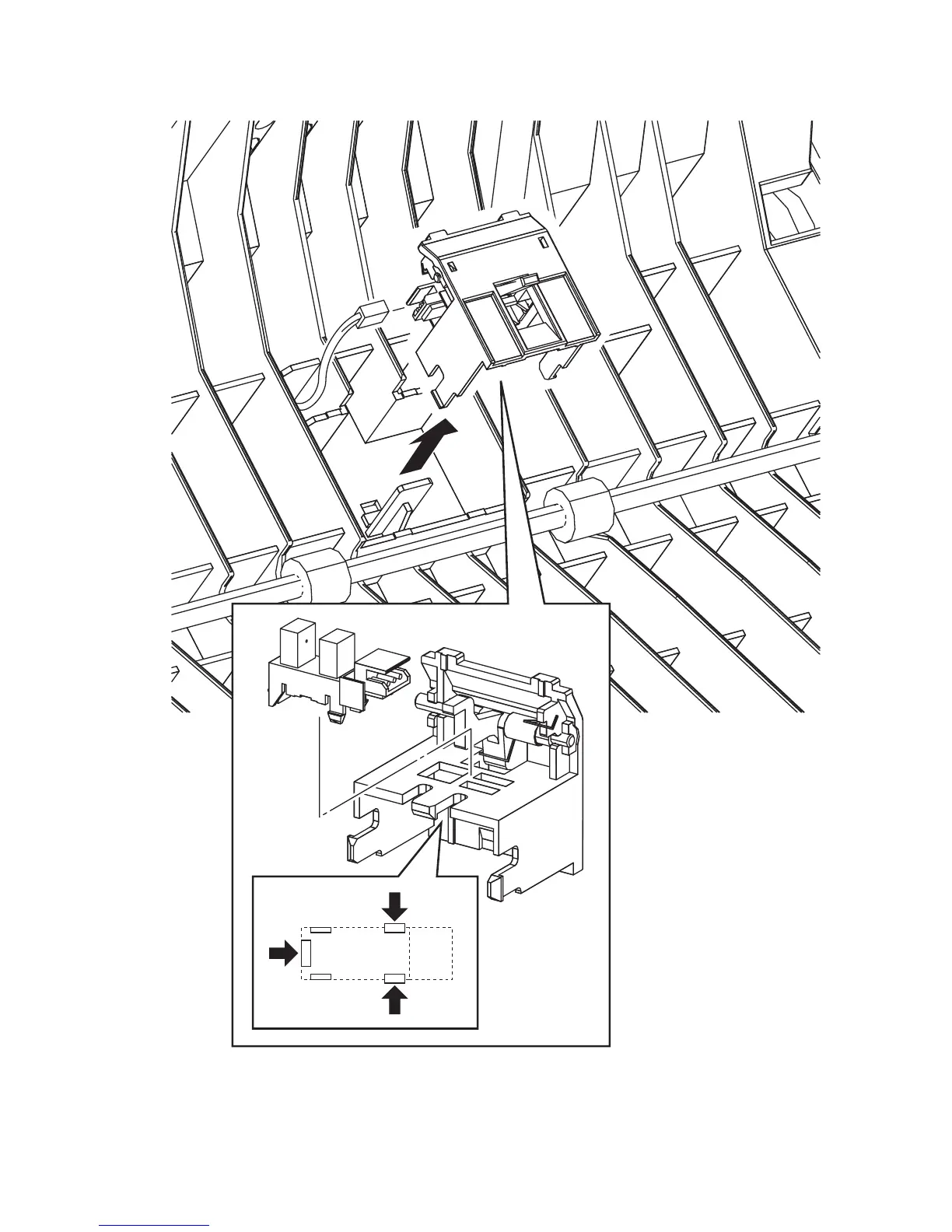

4. Unplug connector (P/J133) from the Duplex Jam Sensor.
5. Release the 3 hooks that secure the Duplex Jam Sensor to the holder.
6. Press the shaft of the actuator through the 2 holes in the holder with a miniature
screwdriver to remove the Duplex Jam Sensor Actuator.
s6300-180
