Service Parts Disassembly 8-125
Paper Pick Assembly HCF T2 (PL12.5.1)
With the proper tools, the lower Paper Pick Assembly HCF T2 can be removed from
the 1100-Sheet Feeder without removing the Top or the Paper Pick Assembly HCF
T1. If a stubby screwdiver is not available, use this procedure:
1. Remove the Paper Pick Assembly HCF T1 (page 8-122).

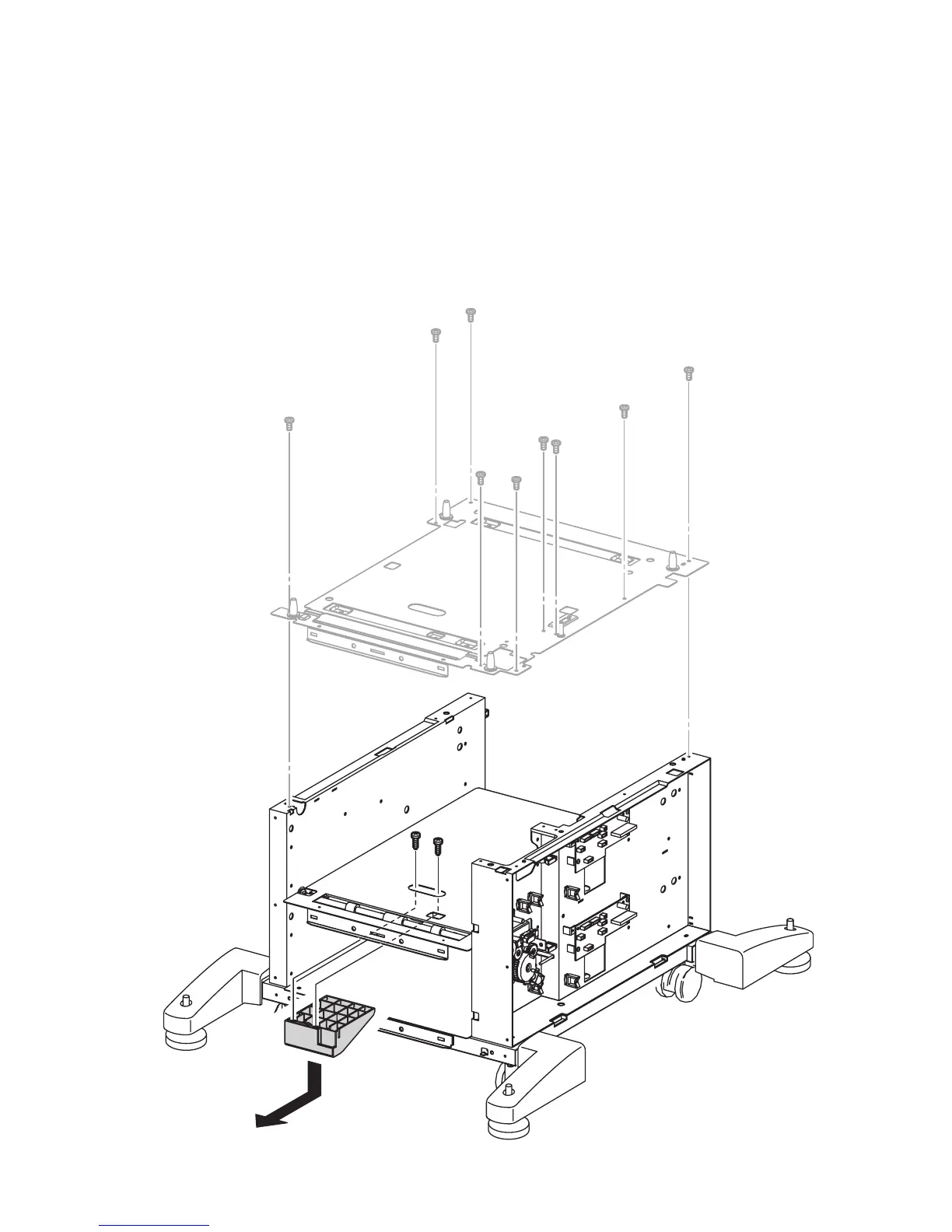

2. Remove 9 screws (metal, 6 mm) that secure the Top, and remove it.
3. Remove 2 screws (self-tapping, plastic 8 mm) that secure the Paper Pick
Assembly HCF T2 Paper Guide.
s6300-273
To Next Page
